CCSO-914X-250.000
ActiveCrystek Corporation
XTAL OSC SO 250.0000MHZ SNWV SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CCSO-914X-250.000
ActiveCrystek Corporation
XTAL OSC SO 250.0000MHZ SNWV SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CCSO-914X-250.000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 35 mA |
| Frequency | 250 MHz |
| Frequency Stability | 100 ppm |
| Height - Seated (Max) [Max] [z] | 0.21 in |
| Height - Seated (Max) [Max] [z] | 5.33 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 14.2 mm |
| Size / Dimension [x] | 0.56 in |
| Size / Dimension [y] | 9.14 mm |
| Size / Dimension [y] | 0.36 " |
| Type | SO (SAW) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 81.42 | |
Description
General part information
CCSO-914X-250.000

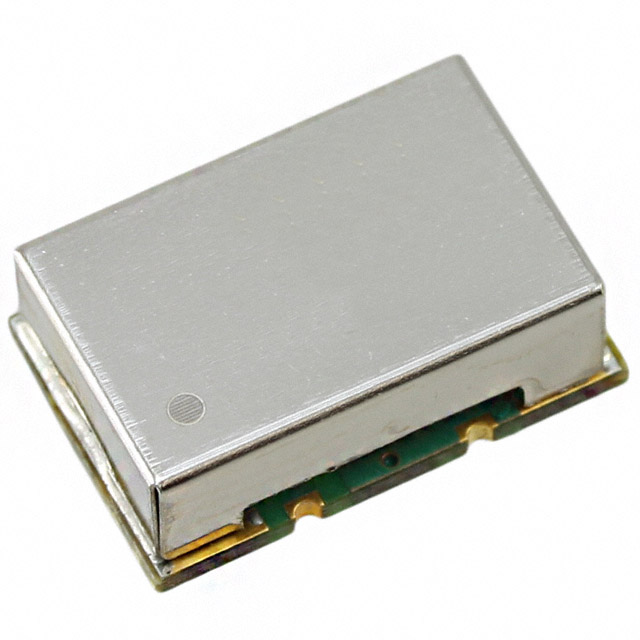

250 MHz SO (SAW) Sine Wave Oscillator 5V 4-SMD, No Lead
Documents
Technical documentation and resources
