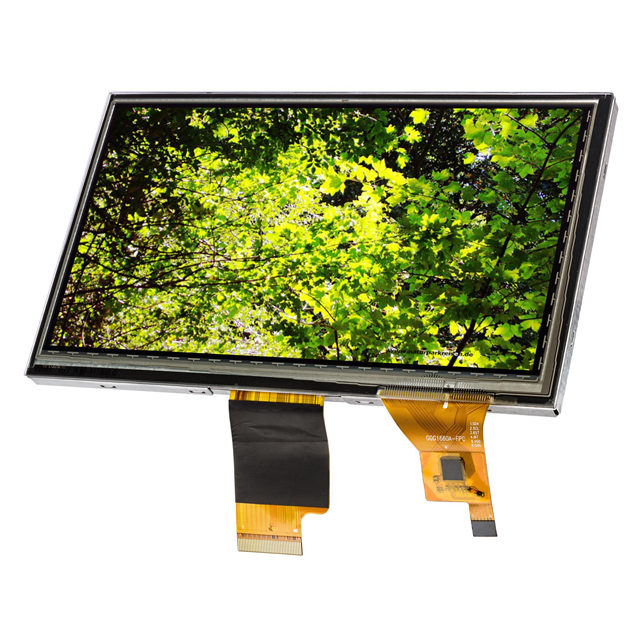

EA R1024X-70BLW
ActiveDisplay Visions
7" TFT DISPLAY WITH 24-BIT RGB I
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EA R1024X-70BLW |
|---|---|
| Backlight | LED |
| Controller Type | GT928, GT911 |
| Diagonal Screen Size | 177.8 mm |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color, IPS (In-Plane Switching) |
| Dot Pitch [y] | 0.15 mm |
| Dot Pitch [z] | 0.14 mm |
| Dot Pixels [x] | 1024 |
| Dot Pixels [y] | 600 pixels |
| Graphics Color | Green, Red, Blue |
| Interface | LVDS |
| Viewing Area [y] | 154.21 mm |
| Viewing Area [z] | 85.92 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 84.09 | |
| 10 | $ 78.66 | |||
| 100 | $ 72.08 | |||
Description
General part information
EA R1024X-70BLW
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) LVDS 7" (177.80mm) 1024 x 600
