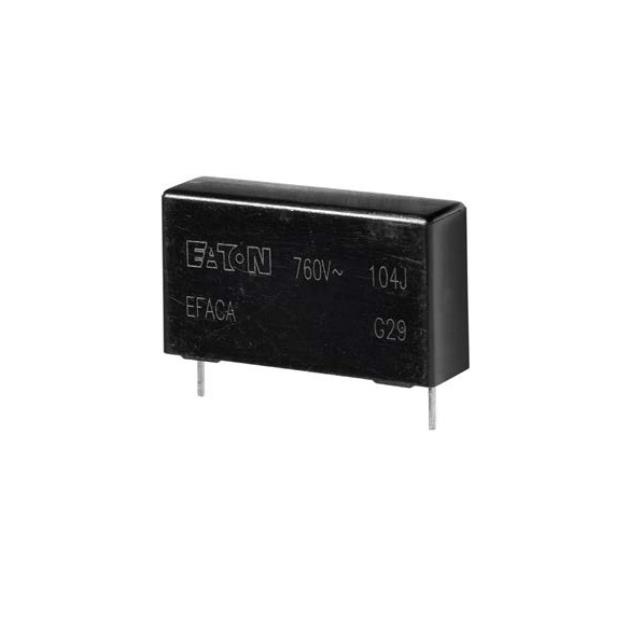

EFACA50J405E144BH
ActiveEaton - Electronics Division
CAP FILM 4UF 5% 500VAC RAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EFACA50J405E144BH
ActiveEaton - Electronics Division
CAP FILM 4UF 5% 500VAC RAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EFACA50J405E144BH |
|---|---|
| Applications | Switching, High Frequency, Automotive |
| Capacitance | 4 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 4.8 mOhms |
| Height - Seated (Max) [Max] [z] | 1.732 in |
| Height - Seated (Max) [Max] [z] | 44 mm |
| Lead Spacing | 37.5 mm |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial - 4 Leads |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 42 mm |
| Size / Dimension [x] | 1.654 in |
| Size / Dimension [y] | 28 mm |
| Size / Dimension [y] | 1.102 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 231 | $ 11.47 | |
Description
General part information
EFACA50J405E144BH
4 µF Film Capacitor 500V Polypropylene (PP), Metallized Radial - 4 Leads
