CM06FD362GO3
ActiveCornell Dubilier Knowles

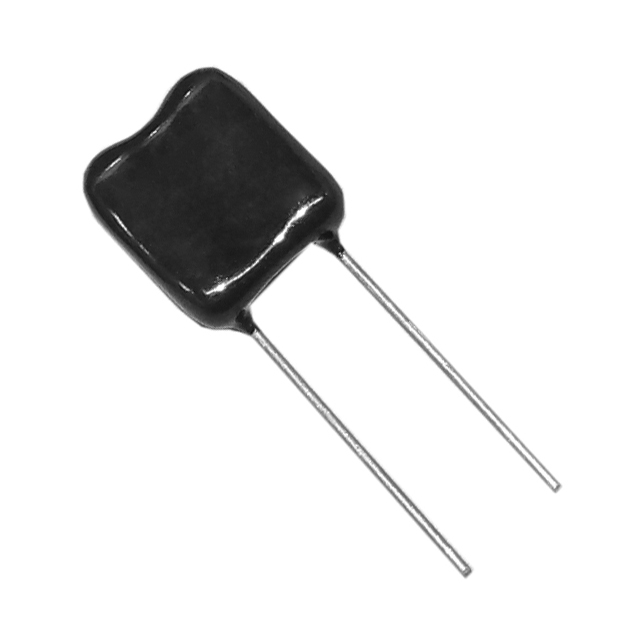

CAP MICA 3600PF 500V RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
CM06FD362GO3
ActiveCornell Dubilier Knowles
CAP MICA 3600PF 500V RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CM06FD362GO3 |
|---|---|
| Capacitance | 3600 pF |
| Dielectric Material | Mica |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 14.2 mm |
| Height - Seated (Max) [Max] | 0.559 in |
| Lead Spacing | 8.7 mm |
| Lead Spacing | 0.343 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 17.3 mm |
| Size / Dimension [x] | 0.681 in |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [y] | 0.299 in |
| Tolerance | 2 % |
| Voltage - Rated | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 16.02 | |
Description
General part information
CM06FD362GO3
3600 pF Mica Capacitor 500 V Radial
