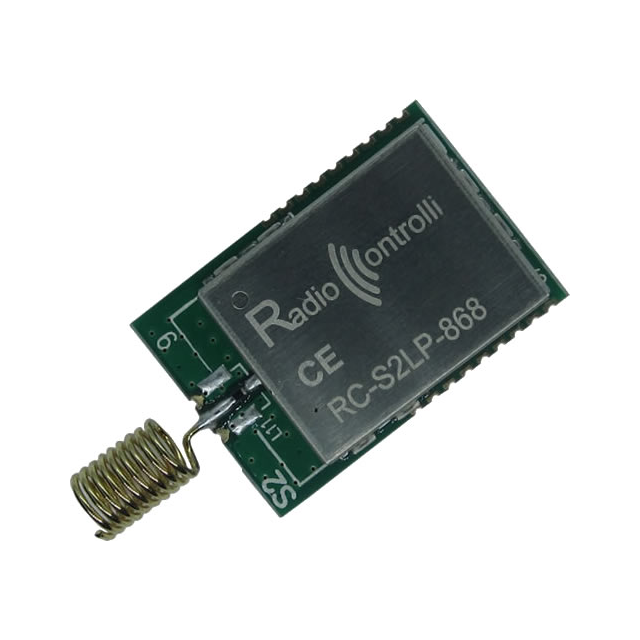

RC-S2LP-868-HA
ActiveRadioControlli
RF TXRX MOD 802.15.4 HELICAL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC-S2LP-868-HA
ActiveRadioControlli
RF TXRX MOD 802.15.4 HELICAL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC-S2LP-868-HA |
|---|---|
| Antenna Type | Helical, Integrated |
| Current - Receiving | 7.2 mA |
| Current - Transmitting [Max] | 20 mA |
| Current - Transmitting [Min] | 11 mA |
| Data Rate | 38.4 kbps |
| Frequency | 868 MHz |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 21-SMD Module |
| Protocol | 6LoWPAN |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -128 dBm |
| Serial Interfaces | SPI |
| Utilized IC / Part | STM32L |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 4 | $ 23.00 | |
| 12 | $ 15.00 | |||
| 20 | $ 12.00 | |||
Description
General part information
RC-S2LP-868-HA
802.15.4 6LoWPAN Transceiver Module 868MHz Integrated, Helical Surface Mount
