JAX-ASY-ONX16
ActiveDiamond Systems

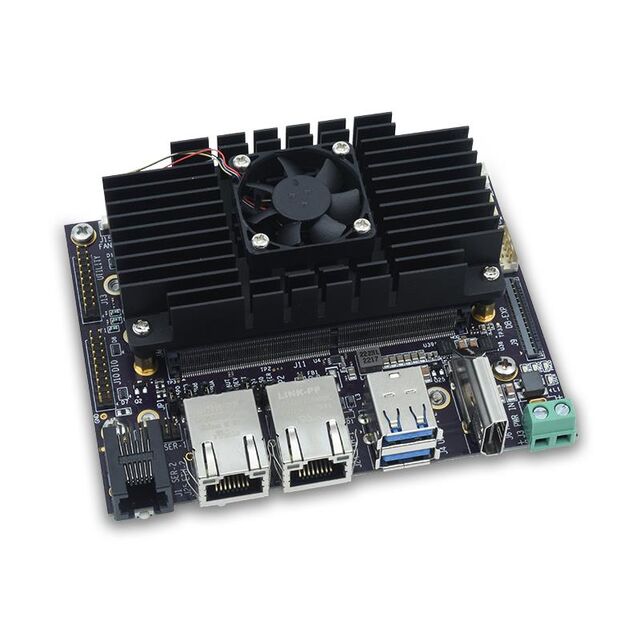

JACKSON ORIN NX 16GB FAN SINK
Deep-Dive with AI
Search across all available documentation for this part.
JAX-ASY-ONX16
ActiveDiamond Systems
JACKSON ORIN NX 16GB FAN SINK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JAX-ASY-ONX16 |
|---|---|
| Cooling Type | Fansink |
| Core Processor | NVIDIA® Jetson™ Nano/NX |
| Ethernet | GbE (2), RJ45 |
| Expansion Site/Bus | I2C, PCIe, M.2, CAN, GPIO |
| Form Factor | M.2 E-Key 2230 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| RAM Capacity/Installed | - |
| RAM Capacity/Installed | 0 GB |
| Size / Dimension [x] | 109.98 mm |
| Size / Dimension [x] | 4.33 in |
| Size / Dimension [y] | 3.35 in |
| Size / Dimension [y] | 85.09 mm |
| Storage Interface | M.2, eMMC |
| USB | USB 2.0 (1), USB 3.2 (3) |
| Video Outputs | CSI, HDMI |
| Watchdog Timer | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 1594.00 | |
| 5 | $ 1562.00 | |||
Description
General part information
JAX-ASY-ONX16
Single Board Computer Core -/0GB RAM NVIDIA® Jetson™ Nano/NX
Documents
Technical documentation and resources
No documents available
