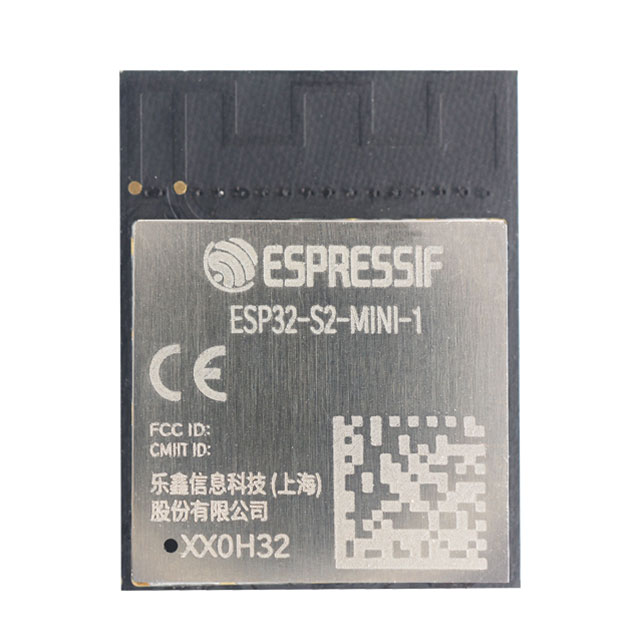

ESP32-S2-MINI-1-N4
Espressif Systems
RF TXRX MOD WIFI PCB TRACE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESP32-S2-MINI-1-N4
Espressif Systems
RF TXRX MOD WIFI PCB TRACE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESP32-S2-MINI-1-N4 |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving [Max] | 68 mA |
| Current - Receiving [Min] | 63 mA |
| Current - Transmitting [Max] | 310 mA |
| Current - Transmitting [Min] | 160 mA |
| Data Rate | 150 Mbps |
| Frequency [Max] | 2.484 GHz |
| Frequency [Min] | 2.412 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 56-VFQFN Exposed Pad |
| Power - Output | 19.5 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -97 dBm |
| Serial Interfaces | SPI, GPIO, PWM, UART, I2C, USB, I2S, ADC |
| Utilized IC / Part | ESP32-S2 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.00 | |
| Digi-Reel® | 1 | $ 2.00 | ||
| Strip | 6500 | $ 2.00 | ||
Description
General part information
ESP32-S2-MINI-1-N4
WiFi 802.11b/g/n Transceiver Module 2.412GHz ~ 2.484GHz PCB Trace Surface Mount
