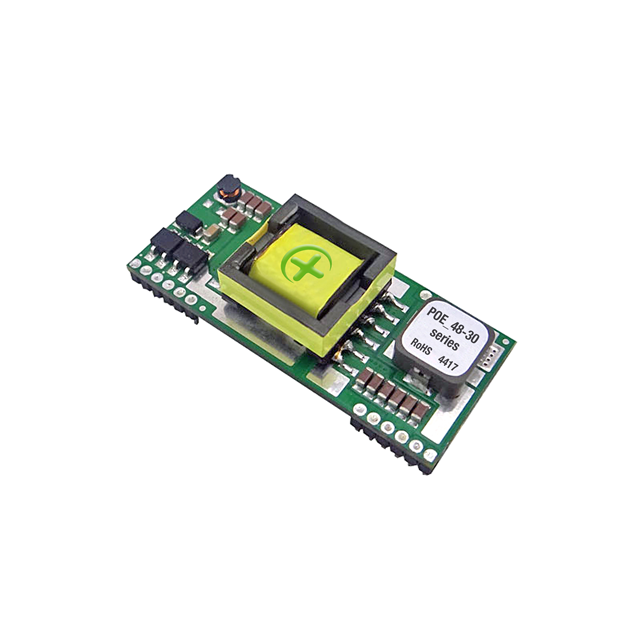

30POEX_4805-A
ObsoleteGAPTEC Electronic
DC-DC POL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 30POEX_4805-A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 83 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 12-SIP Module |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 2.45 in |
| Size / Dimension [x] | 62.2 mm |
| Size / Dimension [y] | 14.7 mm |
| Size / Dimension [y] | 0.58 " |
| Size / Dimension [z] | 1.06 in |
| Size / Dimension [z] | 27 mm |
| Type | Isolated PoE (Power over Ethernet) Module |
| Voltage - Input (Max) [Max] | 57 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
30POEX_4805-A
Isolated PoE (Power over Ethernet) Module DC DC Converter 1 Output 5V 5A 36V - 57V Input
