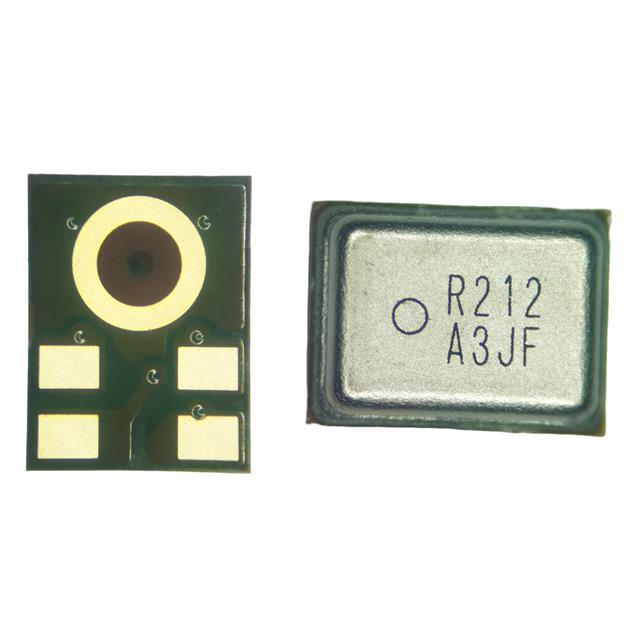

OWMMOD-352609A-S371I02-BP
ActiveOle Wolff Electronics Inc
MIC MEMS DIGITAL PDM OMNI -37DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OWMMOD-352609A-S371I02-BP |
|---|---|
| Direction | Omnidirectional |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Port Location | Bottom |
| S/N Ratio | 66 dB |
| Sensitivity | -37 dB |
| Shape | Rectangular |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.104 in |
| Size / Dimension [y] | 2.65 mm |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 1.28 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.96 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.85 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.74 | |||
| 1000 | $ 0.70 | |||
| 5000 | $ 0.64 | |||
Description
General part information
OWMMOD-352609A-S371I02-BP
Digital Microphone MEMS (Silicon) Omnidirectional (-37dB ±1dB @ 94dB SPL) Solder Pads
