C0825BLDCL12
ActiveINEED MOTOR

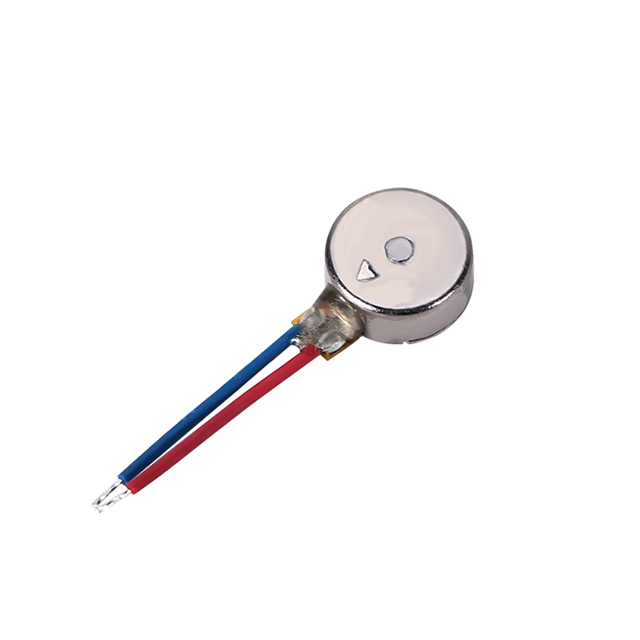

0825 MICRO BRUSHLESS MOTOR
Deep-Dive with AI
Search across all available documentation for this part.
C0825BLDCL12
ActiveINEED MOTOR
0825 MICRO BRUSHLESS MOTOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C0825BLDCL12 |
|---|---|
| Diameter - Shaft [diameter] | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm |
| Function | ERM, Vibration |
| Length - Shaft and Bearing [x] | 0.098 in |
| Length - Shaft and Bearing [x] | 2.5 mm |
| Motor Type | Brushless (BLDC) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Termination Style | Wire Leads |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.00 | |
| 10 | $ 4.00 | |||
| 50 | $ 3.75 | |||
| 100 | $ 3.50 | |||
| 500 | $ 3.00 | |||
| 1000 | $ 2.85 | |||
Description
General part information
C0825BLDCL12
Brushless (BLDC) Vibration, ERM 3VDC
Documents
Technical documentation and resources
No documents available
