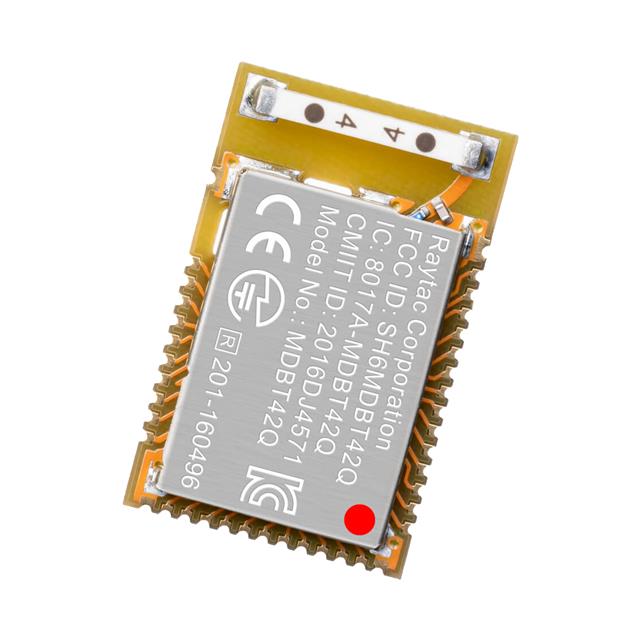

MDBT42Q-ATL2
ActiveRaytac
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDBT42Q-ATL2
ActiveRaytac
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDBT42Q-ATL2 |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving [Max] | 11.2 mA |
| Current - Receiving [Min] | 3.5 mA |
| Current - Transmitting [Max] | 15.4 mA |
| Current - Transmitting [Min] | 2.1 mA |
| Data Rate | 2 Mbps |
| Frequency [Max] | 2.5 GHz |
| Frequency [Min] | 2.36 GHz |
| Memory Size | 192 kB, 24 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 39-SMD Module |
| Power - Output | 4 dBm |
| Protocol | Bluetooth v5.4 |
| RF Family/Standard | Bluetooth |
| Serial Interfaces | GPIO, UART |
| Utilized IC / Part | nRF52811 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 5.98 | |
| 20 | $ 5.90 | |||
| 50 | $ 5.80 | |||
Description
General part information
MDBT42Q-ATL2
Bluetooth Bluetooth v5.4 Transceiver Module 2.36GHz ~ 2.5GHz Integrated, Chip Surface Mount
