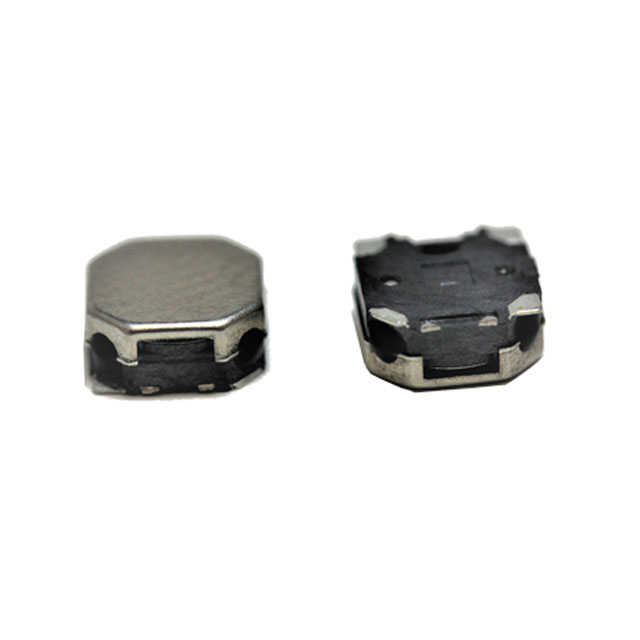

CT05E-04S310-1B
ActiveChallenge Electronics
BUZZER MAGNETIC 3V 5.5X5.5MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CT05E-04S310-1B |
|---|---|
| Current - Supply | 120 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 3.1 kHz |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Side |
| Size / Dimension [x] | 0.217 in |
| Size / Dimension [x] | 5.5 mm |
| Size / Dimension [y] | 5.5 mm |
| Size / Dimension [y] | 0.217 in |
| Sound Pressure Level (SPL) | 80 dB |
| Technology | Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 4.5 V |
| Voltage Range [Min] | 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.02 | |
| 10 | $ 1.64 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.43 | |||
| 100 | $ 1.34 | |||
| 250 | $ 1.24 | |||
| 500 | $ 1.16 | |||
| 1000 | $ 1.10 | |||
| 5000 | $ 1.05 | |||
Description
General part information
CT05E-04S310-1B
Buzzers Transducer, Externally Driven Magnetic 3 V 120mA 3.1kHz 80dB @ 3V, 10cm Surface Mount Solder Pads
