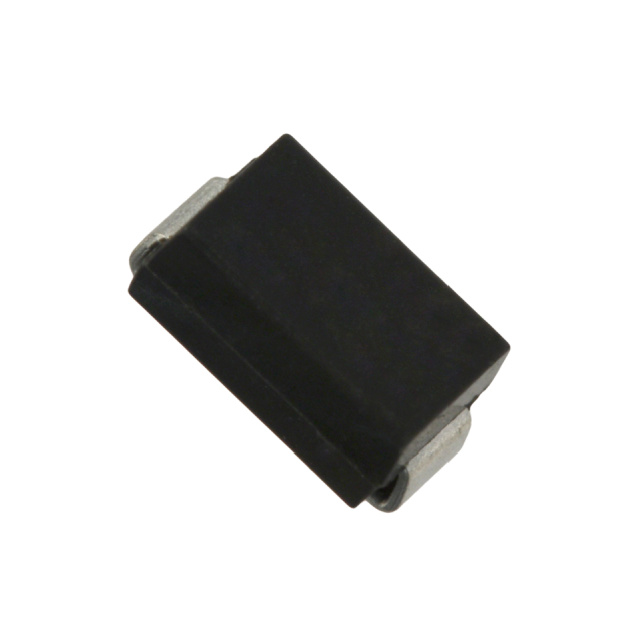

1PGSMB5942HR5G
UnknownTaiwan Semiconductor Corporation
DO-214AA (SMB) ZENER DIODES ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1PGSMB5942HR5G
UnknownTaiwan Semiconductor Corporation
DO-214AA (SMB) ZENER DIODES ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1PGSMB5942HR5G |
|---|---|
| Current - Reverse Leakage @ Vr | 1 µA |
| Impedance (Max) (Zzt) [Max] | 70 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SMB, DO-214AA |
| Power - Max [Max] | 3 W |
| Supplier Device Package | SMB |
| Supplier Device Package | DO-214AA |
| Tolerance | 5 % |
| Voltage - Zener (Nom) (Vz) | 51 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1PGSMB5942HR5G
Zener Diode 51 V 3 W ±5% Surface Mount DO-214AA (SMB)
Documents
Technical documentation and resources
