RA-01SH
ActiveAi-Thinker
RF TXRX MOD ISM<1GHZIPEX SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RA-01SH
ActiveAi-Thinker
RF TXRX MOD ISM<1GHZIPEX SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RA-01SH |
|---|---|
| Antenna Type | Antenna Not Included, I-PEX |
| Current - Receiving | 4.2 mA |
| Frequency [Max] | 930 MHz |
| Frequency [Min] | 803 MHz |
| Modulation | MSK, FSK, OOK, GFSK, GMSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SMD Module |
| Power - Output | 22 dBm |
| Protocol | LoRa™ |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -140 dBm |
| Serial Interfaces | SPI |
| Utilized IC / Part | SX1262 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.23 | |
| 10 | $ 8.46 | |||
| 25 | $ 7.69 | |||
| Digi-Reel® | 1 | $ 9.23 | ||
| 10 | $ 8.46 | |||
| 25 | $ 7.69 | |||
| Tape & Reel (TR) | 50 | $ 7.69 | ||
| 100 | $ 6.92 | |||
| 250 | $ 6.35 | |||
| 500 | $ 5.77 | |||
| 1250 | $ 5.19 | |||
Description
General part information
RA-01SH

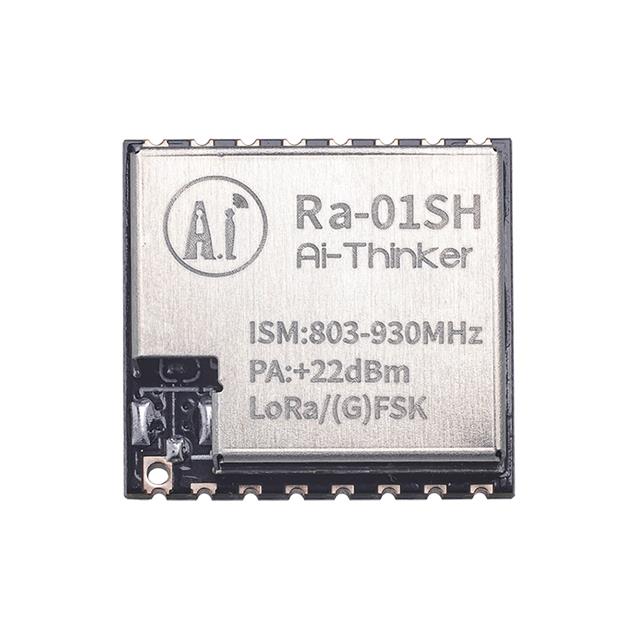

General ISM < 1GHz LoRa™ Transceiver Module 803MHz ~ 930MHz Antenna Not Included, I-PEX Surface Mount
