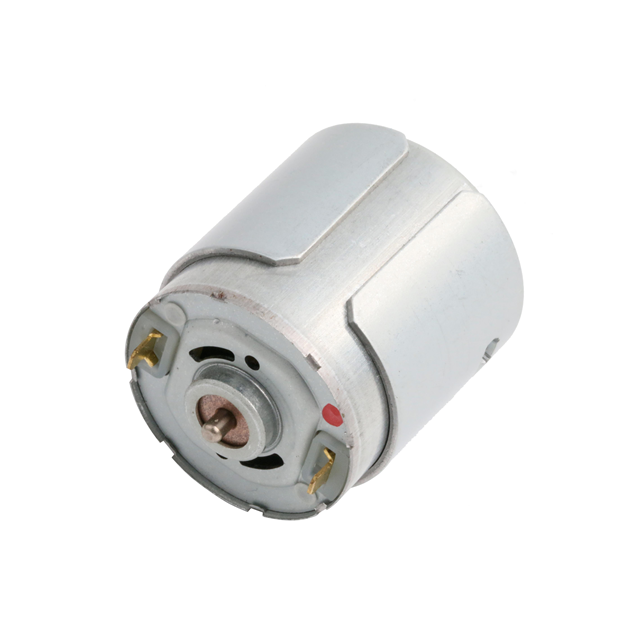

HC385G-303
ActiveJohnson Motor
LOW VOLTAGE DC MOTORS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HC385G-303 |
|---|---|
| Diameter - Shaft [diameter] | 0.091 in |
| Diameter - Shaft [diameter] | 2.3 mm |
| Function | Standard |
| Motor Type | Brushed |
| Mounting Hole Spacing | 0.63 in |
| Mounting Hole Spacing | 16 mm |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 30.48 mm |
| Size / Dimension [diameter] | 1.2 " |
| Termination Style | Solder Tab |
| Torque - Max Momentary (oz-in / mNm) | 7.91 mNm |
| Torque - Max Momentary (oz-in / mNm) | 1.12 oz-in |
| Type | DC Motor |
| Voltage - Rated | 18 VDC |
| Weight | 0.156 lb |
| Weight | 70.87 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.24 | |
| 5 | $ 5.74 | |||
| 10 | $ 5.53 | |||
| 25 | $ 5.27 | |||
| 50 | $ 5.08 | |||
| 100 | $ 4.90 | |||
| 250 | $ 4.67 | |||
| 500 | $ 4.55 | |||
Description
General part information
HC385G-303
Brushed DC Motor Standard 7.4W 18VDC
