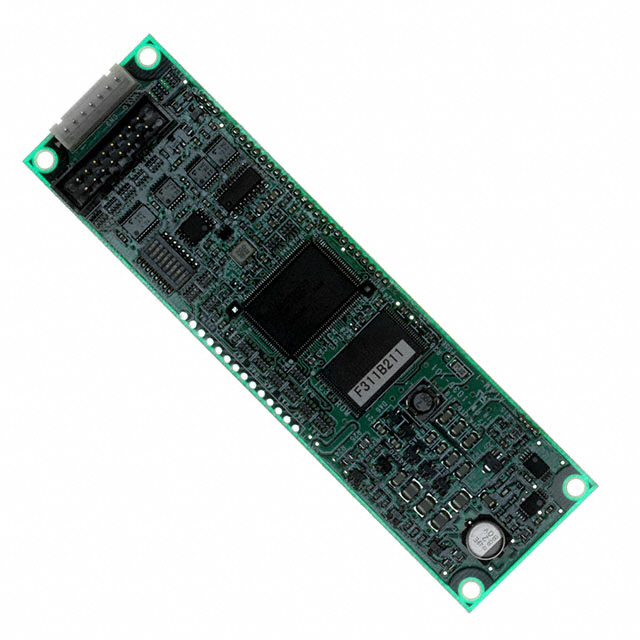

GU256X64C-3900
ObsoleteNoritake U.S.A., Inc.
MODULE VF GRAPHIC DISPLAY 256X64
Deep-Dive with AI
Search across all available documentation for this part.
GU256X64C-3900
ObsoleteNoritake U.S.A., Inc.
MODULE VF GRAPHIC DISPLAY 256X64
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GU256X64C-3900 |
|---|---|
| Display Format [x] | 42 |
| Display Format [y] | 8 |
| Display Type | Graphic |
| Format [x] | 5 Dots |
| Format [y] | 7 |
| Interface | Parallel/Serial |
| Number of Dots [x] | 256 |
| Number of Dots [y] | 64 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 133 mm |
| Outline L x W x H [y] | 38 mm |
| Outline L x W x H [z] | 9 mm |
| Viewing Area [x] | 83.08 mm |
| Viewing Area [y] | 41.48 mm |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GU256X64C-3900
Vacuum Fluorescent Display (VFD) 42 x 8 Graphic 4.75V ~ 5.25V Parallel/Serial 133.00mm x 38.00mm x 9.00mm
