PEAMW12I-14-B1
ActiveTT Electronics/Power Partners Inc.

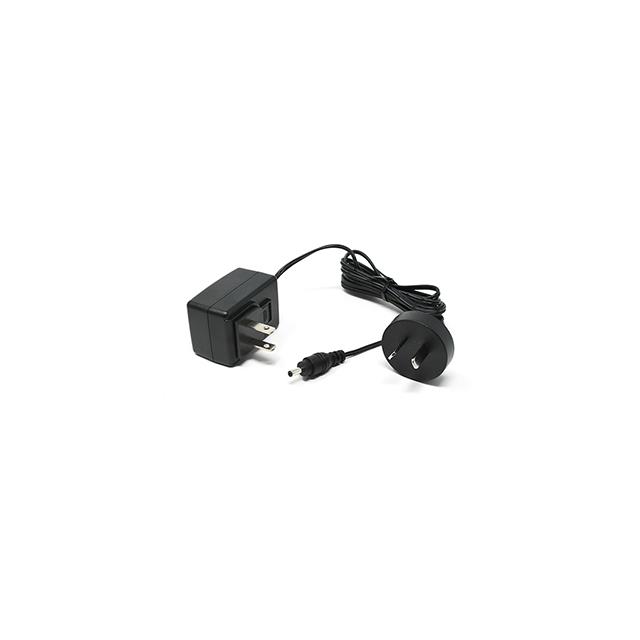

AC/DC WALL MOUNT ADAPTER 24V 12W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PEAMW12I-14-B1
ActiveTT Electronics/Power Partners Inc.
AC/DC WALL MOUNT ADAPTER 24V 12W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PEAMW12I-14-B1 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, FCC, CE, TUV, CB |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Multi-Blade (Single Blade Included) |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 12 W |
| Region Utilized | International |
| Size / Dimension [x] | 2.2 " |
| Size / Dimension [x] | 55.9 mm |
| Size / Dimension [y] | 1.46 in |
| Size / Dimension [y] | 37.1 mm |
| Size / Dimension [z] | 1.26 in |
| Size / Dimension [z] | 32 mm |
| Standard Number | 60601-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.44 | |
| 5 | $ 9.60 | |||
| 10 | $ 9.26 | |||
| 25 | $ 8.83 | |||
| 50 | $ 8.51 | |||
| 100 | $ 8.21 | |||
| 250 | $ 8.13 | |||
Description
General part information
PEAMW12I-14-B1
24V 12 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Single Blade Included) Input
