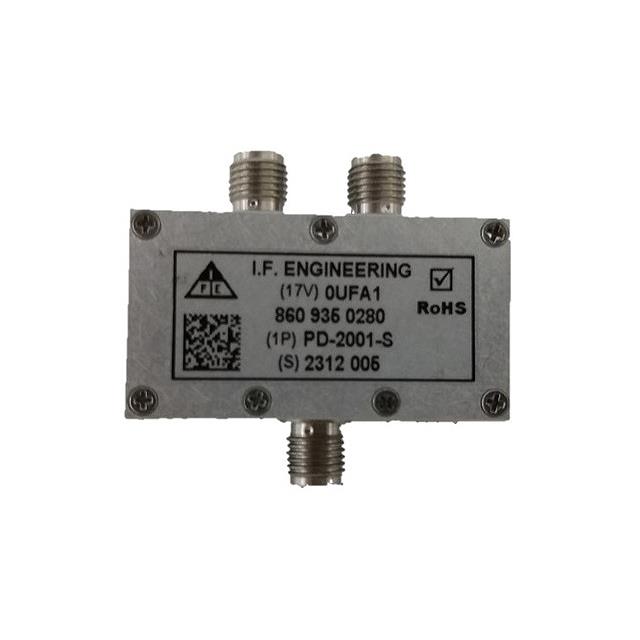

PD-2001-S
ActiveI.F. Engineering Corp and CrossPoint Technologies
2-WAY PWR DIV, 0.5 MHZ - 32 MHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PD-2001-S
ActiveI.F. Engineering Corp and CrossPoint Technologies
2-WAY PWR DIV, 0.5 MHZ - 32 MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PD-2001-S |
|---|---|
| Frequency [Max] | 32 MHz |
| Frequency [Min] | 500 kHz |
| Insertion Loss | 0.3 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension [x] | 1.5 in |
| Size / Dimension [x] | 38.1 mm |
| Size / Dimension [y] | 20.57 mm |
| Size / Dimension [y] | 0.81 in |
| Size / Dimension [z] | 1.5 mm |
| Size / Dimension [z] | 0.059 in |
| Specifications [Max] | 1.1 VSWR |
| Specifications [Min] | 40 º |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 150.00 | |
| 5 | $ 142.00 | |||
| 10 | $ 135.00 | |||
Description
General part information
PD-2001-S
RF Power Divider 500 kHz ~ 32 MHz Isolation (Min) 40dB, 1.1 VSWR (Max) Module, SMA Connectors
