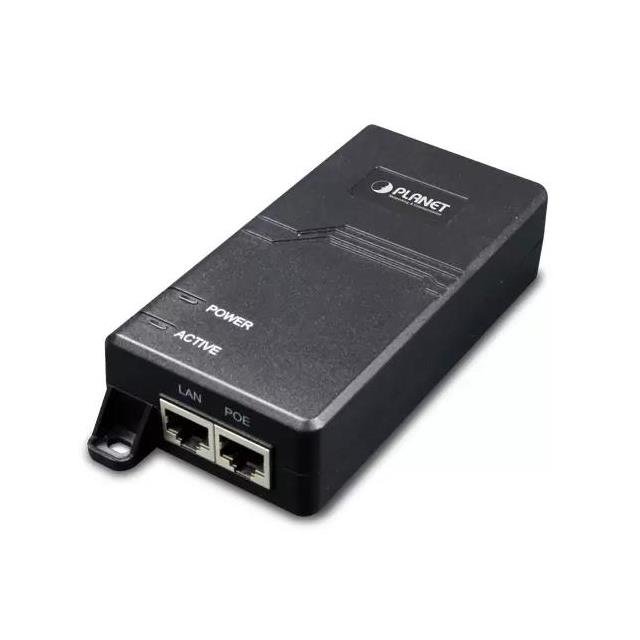

POE-163
ActivePlanet
IEEE 802.3AT GB HIGH POE INJECTO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | POE-163 |
|---|---|
| Approval Agency | FCC, CE |
| Compliance | IEEE802.3at, IEEE802.3af |
| Current - Output | 600 mA |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Input Connector | IEC 320-C6 (Power), RJ45 (Data) |
| Mounting Type | Wall Mount |
| Note | AC Power Cord Sold Separately |
| Number of Ports | 1 |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 30 W |
| Size / Dimension [x] | 115 mm |
| Size / Dimension [x] | 4.53 " |
| Size / Dimension [y] | 62.5 mm |
| Size / Dimension [y] | 2.46 " |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31 mm |
| Type | Midspan Injector |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 53 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 41.20 | |
Description
General part information
POE-163
53V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
