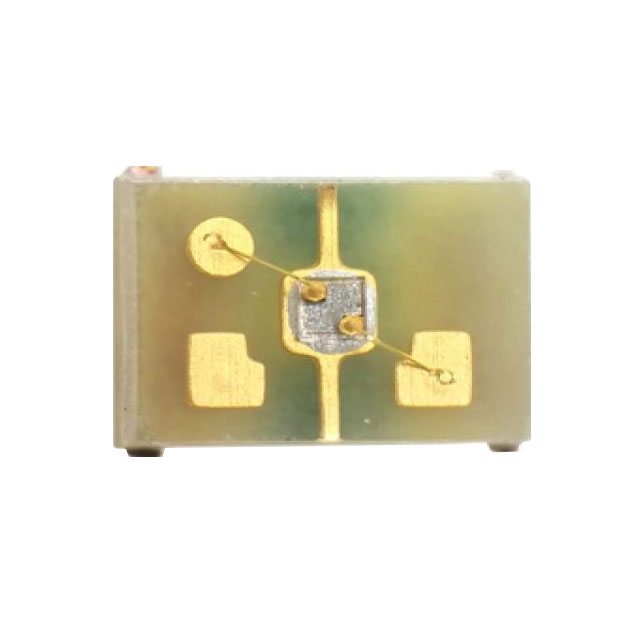

GUVV-C20SD
ActiveGenicom Co., Ltd.
SENSOR PHOTODIODE 240-395NM 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
GUVV-C20SD
ActiveGenicom Co., Ltd.
SENSOR PHOTODIODE 240-395NM 2SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GUVV-C20SD |
|---|---|
| Active Area | 0.08 mm˛ |
| Color - Enhanced | Ultraviolet (UV) |
| Current - Dark (Typ) | 1 nA |
| Diode Type | Schottky |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 2-SMD, No Lead |
| Responsivity @ nm | 0.17 A/W |
| Spectral Range [Max] | 395 nm |
| Spectral Range [Min] | 240 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.94 | |
| Digi-Reel® | 1 | $ 3.94 | ||
| Tape & Reel (TR) | 3000 | $ 1.84 | ||
Description
General part information
GUVV-C20SD
Photodiode 2-SMD, No Lead
Documents
Technical documentation and resources
No documents available
