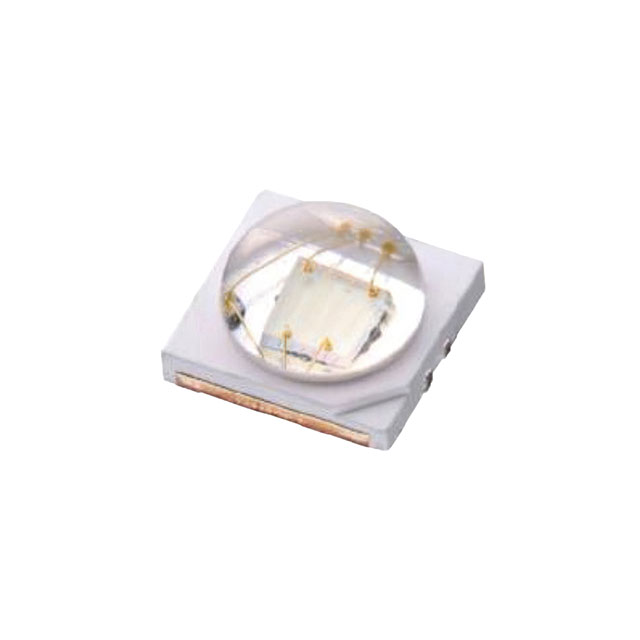

QLSP07BUC
ActiveQuelighting Corp
LED BLUE 463NM 1414
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QLSP07BUC
ActiveQuelighting Corp
LED BLUE 463NM 1414
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QLSP07BUC |
|---|---|
| Color | Blue |
| Current - Max [Max] | 1 A |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] [z] | 0.087 in |
| Height - Seated (Max) [Max] [z] | 2.2 mm |
| Lumens/Watt @ Current - Test | 36 lm/W |
| Luminous Flux @ Current/Temperature | 40 lm |
| Mounting Type | Surface Mount |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [x] | 0.138 in |
| Size / Dimension [y] | 3.5 mm |
| Size / Dimension [y] | 0.138 in |
| Supplier Device Package | 1414 |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength | 463 nm |
| Wavelength [Max] | 475 nm |
| Wavelength [Min] | 450 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.86 | |
| 10 | $ 1.24 | |||
| 100 | $ 0.95 | |||
| Digi-Reel® | 1 | $ 1.86 | ||
| 10 | $ 1.24 | |||
| 100 | $ 0.95 | |||
| Tape & Reel (TR) | 250 | $ 0.95 | ||
| 500 | $ 0.86 | |||
| 750 | $ 0.78 | |||
| 1250 | $ 0.74 | |||
| 2500 | $ 0.70 | |||
| 6250 | $ 0.68 | |||
| 12500 | $ 0.67 | |||
Description
General part information
QLSP07BUC
LED Lighting Color - Blue 463nm (450nm ~ 475nm) 1414 (3535 Metric)
