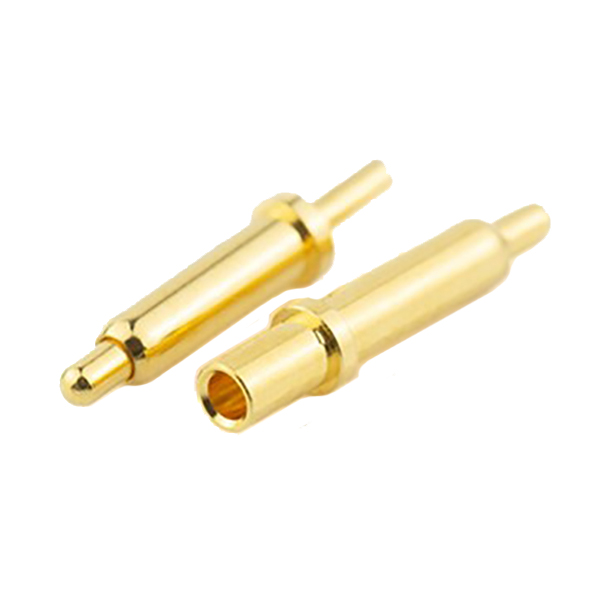

J-5515PT-1-00-0000
ActiveYokowo
5A HIGH CURRENT POGO THROUGH HOL
Deep-Dive with AI
Search across all available documentation for this part.
J-5515PT-1-00-0000
ActiveYokowo
5A HIGH CURRENT POGO THROUGH HOL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | J-5515PT-1-00-0000 |
|---|---|
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 5 A |
| Mating Cycles | 5000 |
| Maximum Working Height [Max] | 7 mm |
| Maximum Working Height [Max] | 0.276 in |
| Minimum Working Height [Min] | 0.217 in |
| Minimum Working Height [Min] | 5.5 mm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Plunger Size [diameter] | 0.035 in |
| Plunger Size [diameter] | 0.9 mm |
| Recommended Working Height | 6 mm |
| Recommended Working Height | 0.236 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.64 | |
| 50 | $ 1.49 | |||
Description
General part information
J-5515PT-1-00-0000
Contact Spring Through Hole
Documents
Technical documentation and resources
No documents available
