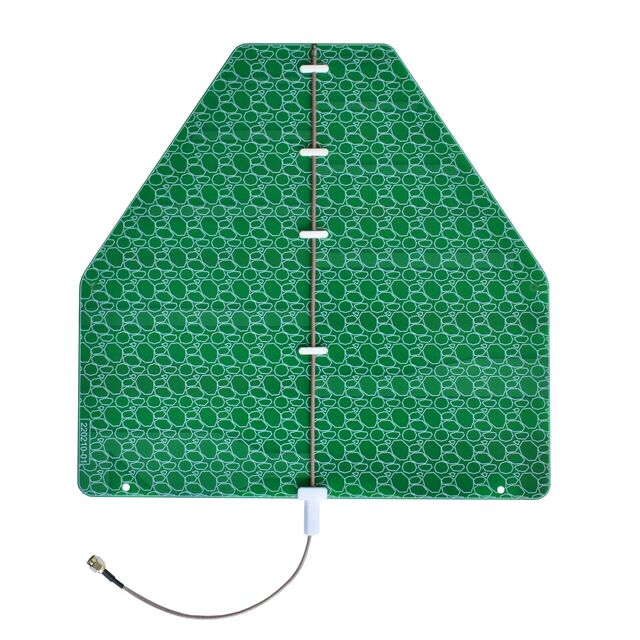

AN220208-01C
ActiveSevskiy GmbH
RF ANT DIRECTED LOW BAND SMA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN220208-01C
ActiveSevskiy GmbH
RF ANT DIRECTED LOW BAND SMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN220208-01C |
|---|---|
| Antenna Type | Log-Periodic |
| Applications | 5G, RFID, IoT, LTE, ISM |
| Features | 170 mm |
| Features | Cable |
| Frequency (Center/Band) | 690 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 1 GHz |
| Frequency Range [Min] | 370 MHz |
| Gain | 5 dBi |
| Height (Max) [Max] | 0.063 in |
| Height (Max) [Max] | 1.6 mm |
| Mounting Type | Screw Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 5 W |
| Return Loss | -10 dB |
| RF Family/Standard | UHF |
| VSWR | 1.92 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 79.99 | |
| 10 | $ 77.35 | |||
| 50 | $ 74.80 | |||
| 100 | $ 72.33 | |||
| 500 | $ 69.94 | |||
| 1000 | $ 67.63 | |||
| 5000 | $ 65.40 | |||
| 10000 | $ 63.24 | |||
| 50000 | $ 61.16 | |||
Description
General part information
AN220208-01C
RF ANTENNA 5G, IoT, ISM, LTE, RFID Log-Periodic SMA Male Screw Mount
