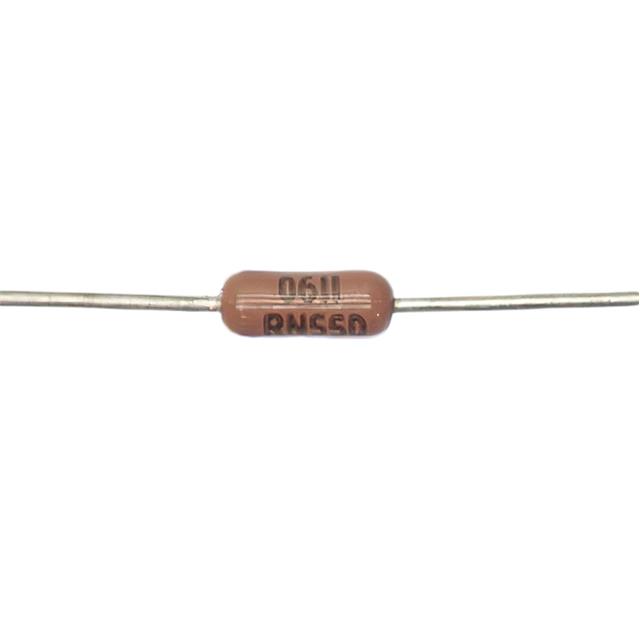

RN55D5001F
ActiveMepco
RESISTOR, 5K OHM, 0.125 W, FIXED
Deep-Dive with AI
Search across all available documentation for this part.
RN55D5001F
ActiveMepco
RESISTOR, 5K OHM, 0.125 W, FIXED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RN55D5001F |
|---|---|
| Composition | Metal Film |
| Features | Military, Flame Retardant Coating, Safety, Moisture Resistant |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | Axial |
| Power (Watts) | 0.125 W |
| Power (Watts) | 0.125 W |
| Resistance | 5 kOhms |
| Size / Dimension [diameter] | 0.09 in |
| Size / Dimension [diameter] | 2.29 mm |
| Size / Dimension [x] | 0.24 in |
| Size / Dimension [x] | 6.1 mm |
| Supplier Device Package | Axial |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.15 | |
Description
General part information
RN55D5001F
5 kOhms ±1% 0.125W, 1/8W Through Hole Resistor Axial Flame Retardant Coating, Military, Moisture Resistant, Safety Metal Film
Documents
Technical documentation and resources
No documents available
