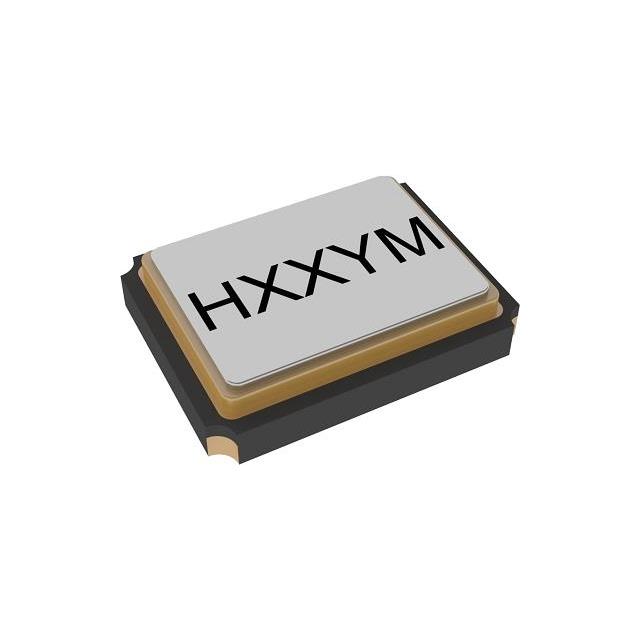

X2C024000DZ1H-HU
ActiveHarmony Electronics Corp / H.ELE.
HSX211S/24MHZ/6PF/20PPM/20PPM@-3
Deep-Dive with AI
Search across all available documentation for this part.
X2C024000DZ1H-HU
ActiveHarmony Electronics Corp / H.ELE.
HSX211S/24MHZ/6PF/20PPM/20PPM@-3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | X2C024000DZ1H-HU |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 24 MHz |
| Frequency Stability | 20 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.5 mm |
| Height - Seated (Max) [Max] [z] | 0.02 " |
| Load Capacitance | 6 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.27 | |
| 6000 | $ 0.26 | |||
| 15000 | $ 0.25 | |||
Description
General part information
X2C024000DZ1H-HU
24 MHz ±20ppm Crystal 6pF 100 Ohms 4-SMD, No Lead
