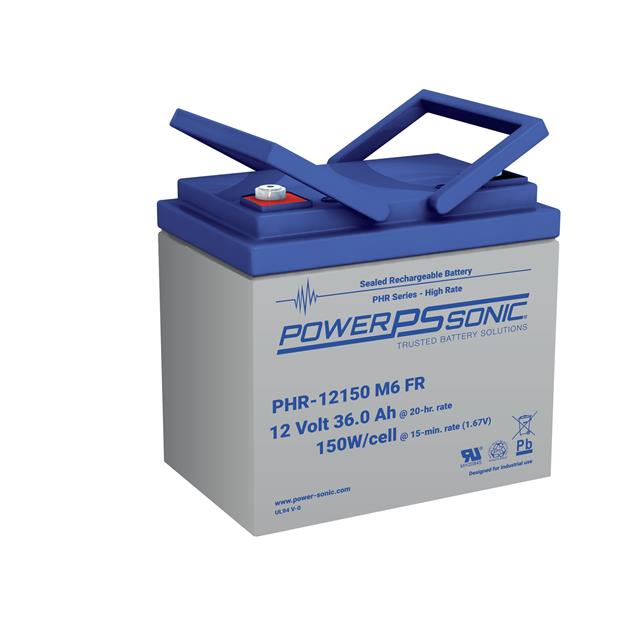

PHR-12150 M6 FR
ActivePower Sonic
BATTERY LEAD ACID 12V 36AH
Deep-Dive with AI
Search across all available documentation for this part.
PHR-12150 M6 FR
ActivePower Sonic
BATTERY LEAD ACID 12V 36AH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PHR-12150 M6 FR |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 36 Ah |
| Discharge Rate | 20 Hrs |
| Size / Dimension [x] | 7.68 " |
| Size / Dimension [x] | 195.1 mm |
| Size / Dimension [y] | 130 mm |
| Size / Dimension [y] | 5.12 " |
| Size / Dimension [z] | 6.57 in |
| Size / Dimension [z] | 166.9 mm |
| Standard Charge Current | 1.8 A |
| Standard Charge Time | 20 Hrs |
| Termination Style | Nut and Bolt, M5 |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 173.94 | |
| 10 | $ 144.03 | |||
| 50 | $ 126.24 | |||
Description
General part information
PHR-12150 M6 FR
12 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 36Ah
Documents
Technical documentation and resources
No documents available
