7000-12981-0000000
ActiveMurrelektronik, Inc

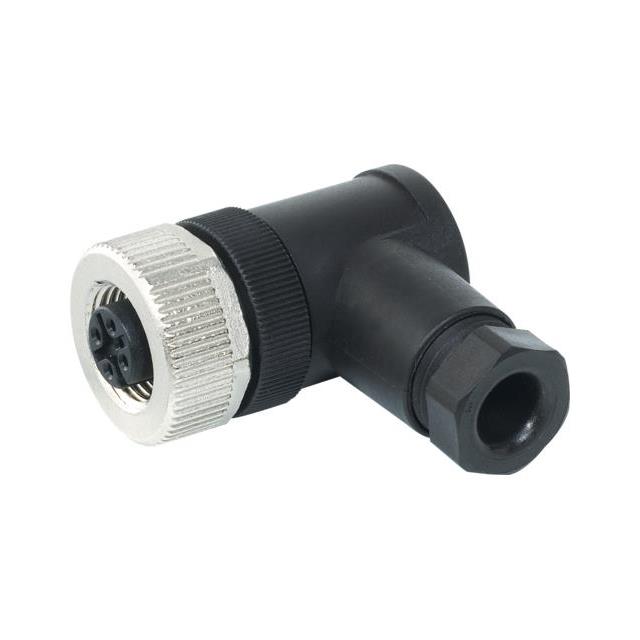

M12 FEMALE 90 FIELD-WIREABLE SCR
Deep-Dive with AI
Search across all available documentation for this part.
7000-12981-0000000
ActiveMurrelektronik, Inc
M12 FEMALE 90 FIELD-WIREABLE SCR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7000-12981-0000000 |
|---|---|
| Cable Opening [diameter] | 6 mm, 4 mm |
| Cable Opening [diameter] | 0.236 in, 0.157 in |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Plastic |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 21.51 | |
| 10 | $ 18.83 | |||
| 25 | $ 18.02 | |||
| 50 | $ 17.44 | |||
| 100 | $ 16.86 | |||
| 250 | $ 15.93 | |||
| 500 | $ 15.46 | |||
Description
General part information
7000-12981-0000000
4 Position Circular Connector Plug, Female Sockets Screw
Documents
Technical documentation and resources
No documents available
