Technical Specifications
Parameters and characteristics for this part
| Specification | 2J2183B-B05H |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | LPWA, 3G, CBRS, 2G, CAT-M, NB-IoT, LTE, NR, 4G, 5G, IoT |
| Features | Cable |
| Features | 3 m |
| Frequency (Center/Band) | 5.537 GHz, 788.5 MHz, 4.15 GHz, 2.059 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 5.925 GHz, 960 MHz, 5 GHz, 2.69 GHz |
| Frequency Range [Min] | 1.427 GHz, 3.3 GHz, 5.15 GHz, 617 MHz |
| Gain | 3.9 dBi, 4 dBi |
| Height (Max) [Max] [z] | 220 mm |
| Height (Max) [Max] [z] | 8.661 in |
| Ingress Protection | IP67 |
| Mounting Type | Wall Mount |
| Number of Bands | 4 |
| Power - Max [Max] | 35 W |
| Return Loss | -13 dB, -8.3 dB, -14.1 dB, -11.9 dB |
| RF Family/Standard | Cellular |
| VSWR | 1.7, 1.9, 2.4, 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 45.15 | |
| 10 | $ 33.70 | |||
| 25 | $ 31.85 | |||
Description
General part information
2J2183B-B05H

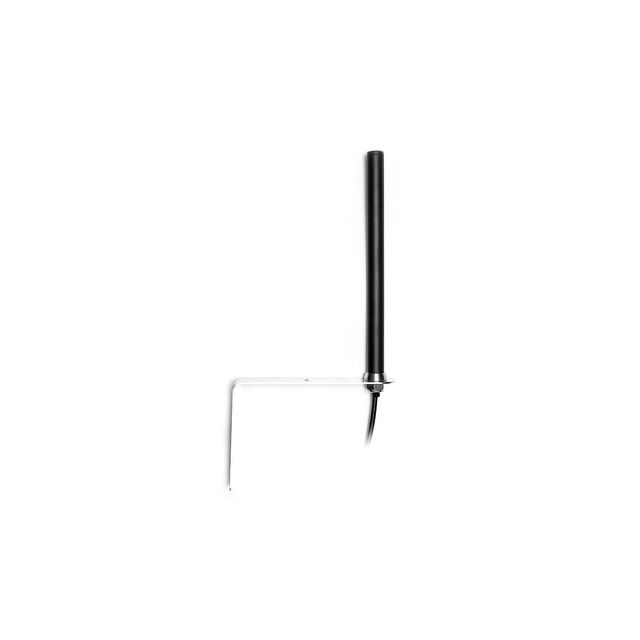

RF ANTENNA 2G, 3G, 4G, 5G, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, NR Whip, Straight SMA Male Wall Mount
