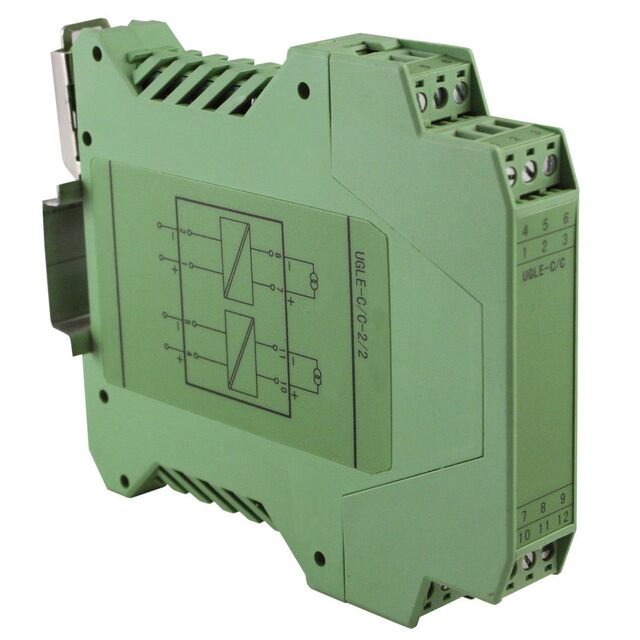

ASI451130
ActiveASI-Automation Systems Interconnect
4-20MA SIGNAL ISOLATOR, 2 CHANNE
Deep-Dive with AI
Search across all available documentation for this part.
ASI451130
ActiveASI-Automation Systems Interconnect
4-20MA SIGNAL ISOLATOR, 2 CHANNE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASI451130 |
|---|---|
| Input Range (Current, Voltage) [Max] | 20 mA |
| Input Range (Current, Voltage) [Min] | 4 mA |
| Input Type | Current |
| Isolation | 1500 V |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Range [Max] | 20 mA |
| Output Range [Min] | 4 mA |
| Output Type | Current |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 20 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 146.62 | |
Description
General part information
ASI451130
4-20MA SIGNAL ISOLATOR, 2 CHANNE
Documents
Technical documentation and resources
No documents available
