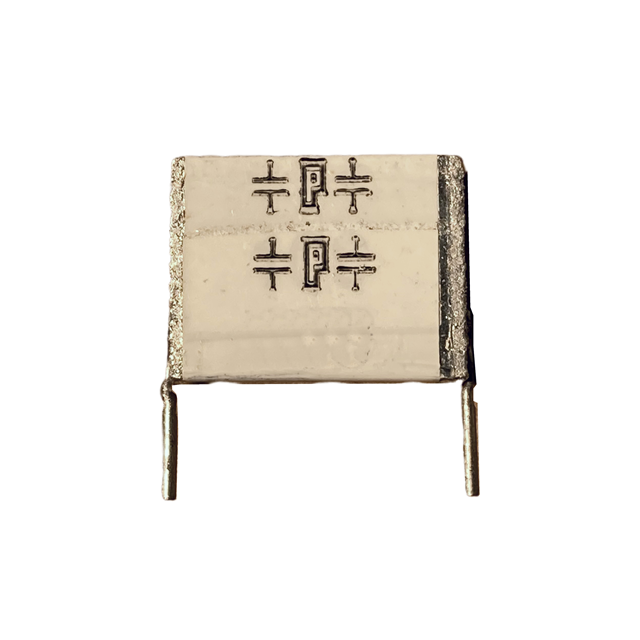

474K400RA6
ActivePaktron
CAPACITOR MLP .47UF 400V RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
474K400RA6
ActivePaktron
CAPACITOR MLP .47UF 400V RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 474K400RA6 |
|---|---|
| Applications | High Pulse, EMI, DV/DT, RFI Suppression |
| Capacitance | 0.47 µF |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | 12 mOhms |
| Height - Seated (Max) [Max] | 0.437 in |
| Height - Seated (Max) [Max] | 11.1 mm |
| Lead Spacing | 15 mm |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 0.65 in |
| Size / Dimension [x] | 16.5 mm |
| Size / Dimension [y] | 7.4 mm |
| Size / Dimension [y] | 0.291 " |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.82 | |
| 10 | $ 2.68 | |||
| 50 | $ 2.26 | |||
| 100 | $ 2.12 | |||
| 500 | $ 1.88 | |||
| 1000 | $ 1.77 | |||
| 2500 | $ 1.73 | |||
Description
General part information
474K400RA6
0.47 µF Film Capacitor 250V 400V Polyester, Metallized Radial
