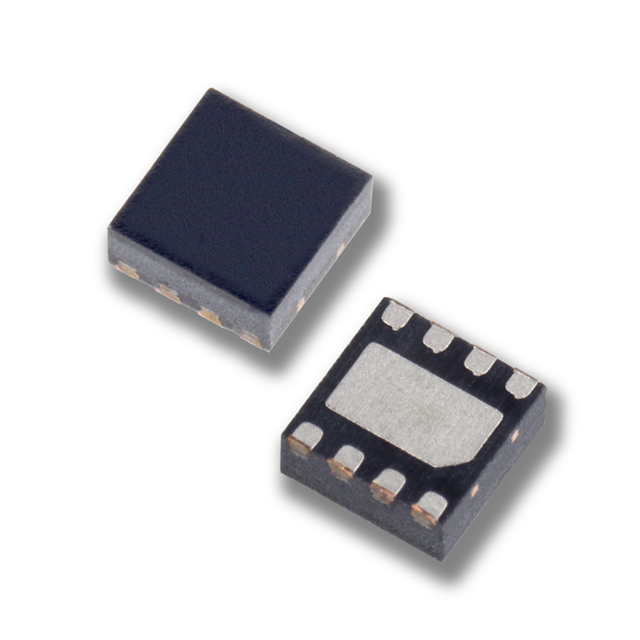

PAD100 DFN 8L ROHS
ActiveLinear Integrated Systems, Inc.
DIODE GEN PURP 30V 10MA 8DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAD100 DFN 8L ROHS
ActiveLinear Integrated Systems, Inc.
DIODE GEN PURP 30V 10MA 8DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PAD100 DFN 8L ROHS |
|---|---|
| Capacitance @ Vr, F | 1.5 pF |
| Current - Average Rectified (Io) | 10 mA |
| Current - Reverse Leakage @ Vr | 100 pA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | 8-VFDFN Exposed Pad |
| Speed | Any Speed |
| Speed | 200 mA |
| Supplier Device Package | 8-DFN (2x2) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.31 | |
| 10 | $ 3.87 | |||
| 25 | $ 3.66 | |||
| 100 | $ 3.17 | |||
| 250 | $ 3.01 | |||
| 500 | $ 2.70 | |||
| 1000 | $ 2.28 | |||
| Digi-Reel® | 1 | $ 4.31 | ||
| 10 | $ 3.87 | |||
| 25 | $ 3.66 | |||
| 100 | $ 3.17 | |||
| 250 | $ 3.01 | |||
| 500 | $ 2.70 | |||
| 1000 | $ 2.28 | |||
| Tape & Reel (TR) | 3000 | $ 2.16 | ||
Description
General part information
PAD100 DFN 8L ROHS
Diode 30 V 10mA Surface Mount 8-DFN (2x2)
