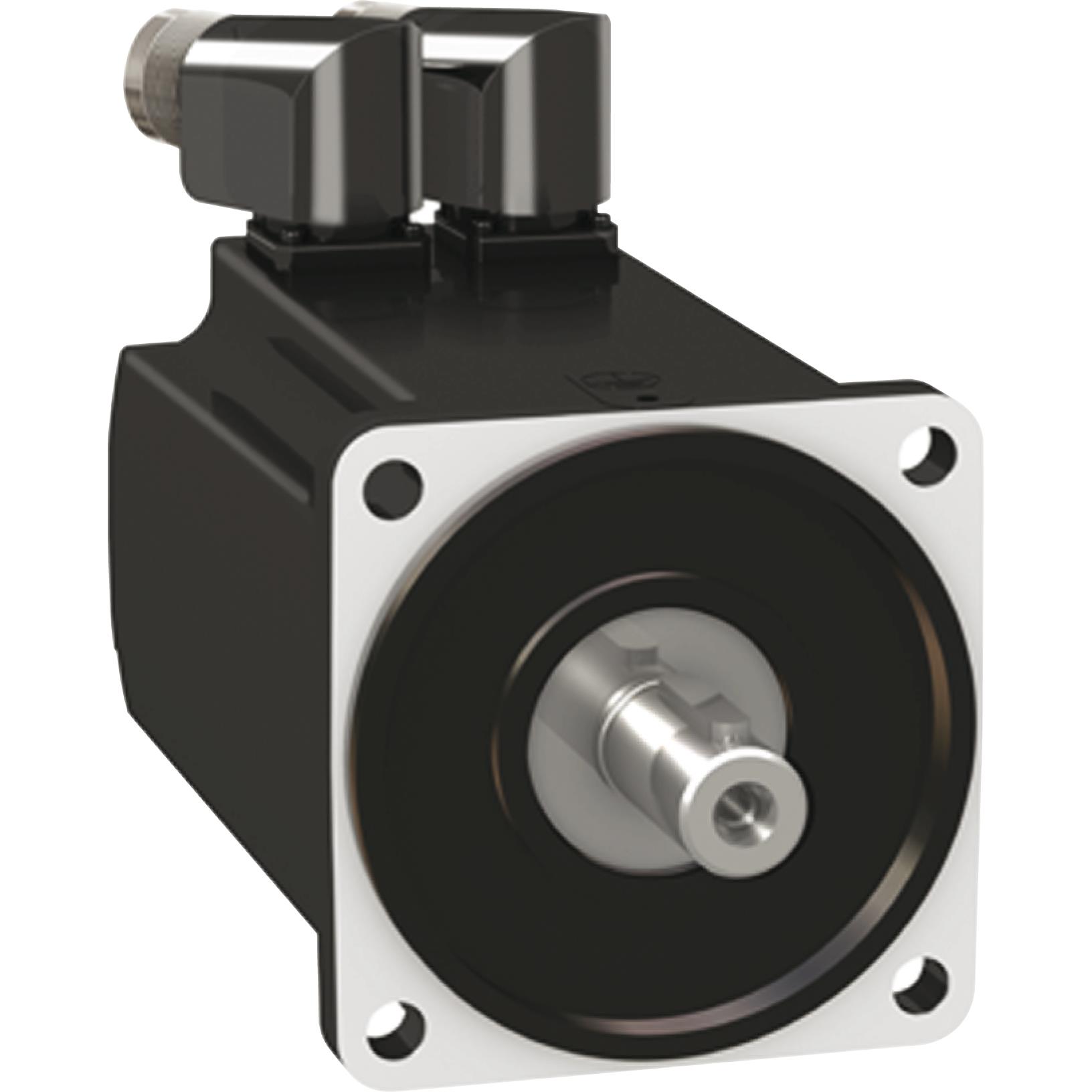

BMH1002T36A2A
ActiveSQUARE D BY SCHNEIDER ELECTRIC
MOTOR 100MM IP65 KEY ENC SINGLE1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BMH1002T36A2A
ActiveSQUARE D BY SCHNEIDER ELECTRIC
MOTOR 100MM IP65 KEY ENC SINGLE1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BMH1002T36A2A |
|---|---|
| Diameter - Shaft [diameter] | 0.75 in |
| Diameter - Shaft [diameter] | 19.05 mm |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing [x] | 39.88 mm |
| Length - Shaft and Bearing [x] | 1.57 in |
| Mounting Hole Spacing | 95 mm |
| Mounting Hole Spacing | 3.74 in |
| Power - Rated | 1.45 kW |
| RPM | 6000 RPM |
| Size / Dimension [x] | 100 mm |
| Size / Dimension [x] | 3.937 in |
| Size / Dimension [y] | 3.937 in |
| Size / Dimension [y] | 100 mm |
| Termination Style | Connector |
| Torque - Rated (oz-in / mNm) | 651.4 oz-in |
| Torque - Rated (oz-in / mNm) | 4600 mNm |
| Type | AC Motor |
| Voltage - Rated | 240 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1476.60 | |
Description
General part information
BMH1002T36A2A
AC Motor Servomotor 6000 RPM 1.45kW 240VAC
Documents
Technical documentation and resources
