8166
ActiveRadial Magnets, Inc.

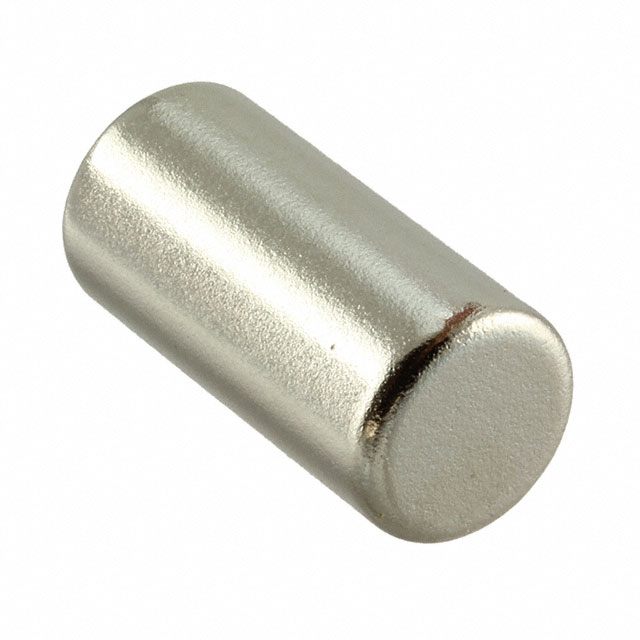

MAGNET 0.375"D X 0.750"THICK CYL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8166
ActiveRadial Magnets, Inc.
MAGNET 0.375"D X 0.750"THICK CYL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8166 |
|---|---|
| Finish | NiCuNi |
| Gauss Strength | 5551 G |
| Grade | N35 |
| Magnetization | Axial |
| Material | Neodymium Iron Boron (NdFeB) |
| Operating Temperature | 80 °C |
| Shape | Cylindrical |
| Size [diameter] | 9.53 mm |
| Size [diameter] | 0.375 in |
| Size [z] | 19 mm |
| Size [z] | 0.75 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.15 | |
| 10 | $ 2.57 | |||
| 25 | $ 2.08 | |||
| 50 | $ 1.94 | |||
| 100 | $ 1.84 | |||
| 500 | $ 1.55 | |||
| 1000 | $ 1.45 | |||
| 5000 | $ 1.36 | |||
Description
General part information
8166
Magnet Neodymium Iron Boron (NdFeB) N35 0.375" Dia x 0.750" H (9.53mm x 19.0mm)
