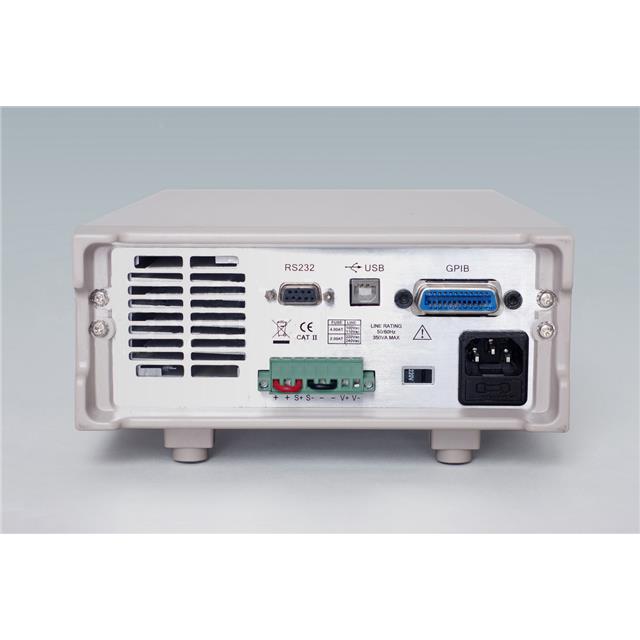

IT6952A
ActiveITECH ELECTRONIC CO.,LTD.
DC PWS 600W/60V/25A WIDE-RANGE
Deep-Dive with AI
Search across all available documentation for this part.
IT6952A
ActiveITECH ELECTRONIC CO.,LTD.
DC PWS 600W/60V/25A WIDE-RANGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IT6952A |
|---|---|
| Accuracy - Voltmeter; Ammeter | 0.03% + 5mV, 0.1% + 25mA |
| Current - Output [Max] | 25 A |
| Current - Output [Min] | 0 A |
| Current Regulation - Load | 10 mA, 0.1 % |
| Display Type | VFD |
| Features | Programmable |
| Number of Characters | 12 |
| Number of Outputs | 2 |
| Power (Watts) | 600 W |
| Ripple | 20 mV |
| Size / Dimension [x] | 446 mm |
| Size / Dimension [x] | 17.559 in |
| Size / Dimension [y] | 214.5 mm |
| Size / Dimension [y] | 8.445 in |
| Size / Dimension [z] | 88.2 mm |
| Size / Dimension [z] | 3.472 in |
| Type | Bench (AC to DC) |
| Voltage - Output [Max] | 60 VDC |
| Voltage - Output [Min] | 0 VDC |
| Voltage Regulation - Load | 30 mV, 0.01 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1315.61 | |
| 5 | $ 1255.63 | |||
Description
General part information
IT6952A
0 ~ 60V Output Bench (AC to DC) Power Supply VFD 0 ~ 25A Output 600W Features Programmable
