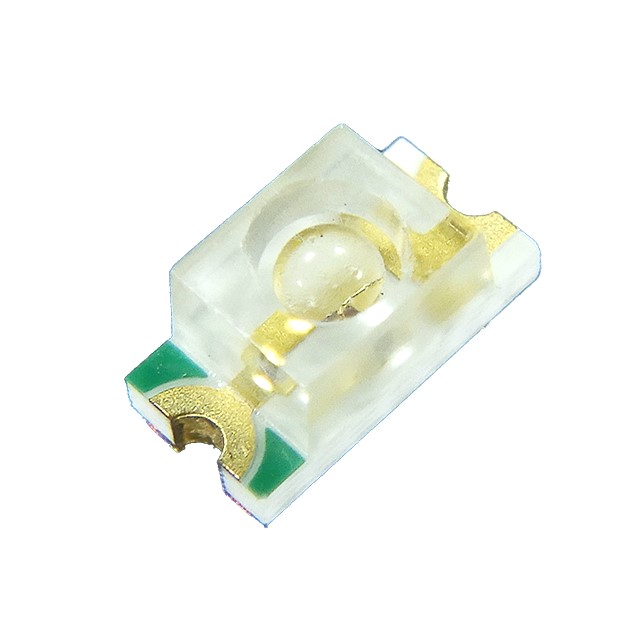

QBLP651-S3
ActiveQT Brightek (QTB)
1206D LED RED 640NM DOMINANT, 66
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBLP651-S3
ActiveQT Brightek (QTB)
1206D LED RED 640NM DOMINANT, 66
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBLP651-S3 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.5 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.1 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 90 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | 1206 |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 640 nm |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 3000 | $ 0.12 | ||
| 6000 | $ 0.11 | |||
| 9000 | $ 0.11 | |||
| 15000 | $ 0.10 | |||
| 21000 | $ 0.10 | |||
| 30000 | $ 0.10 | |||
| 75000 | $ 0.09 | |||
Description
General part information
QBLP651-S3
Red 640nm LED Indication - Discrete 2V 1206 (3216 Metric)
