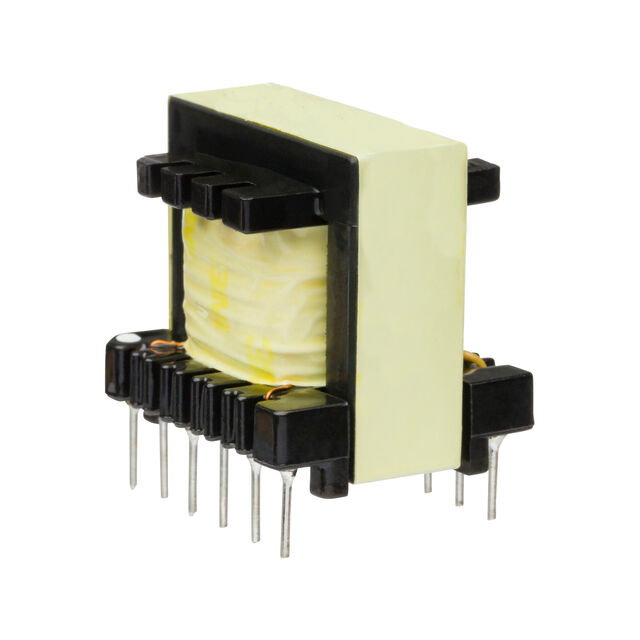

POL-24208
ActivePremier Magnetics
XFMR LED DR AC/DC CONV 650UH TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
POL-24208
ActivePremier Magnetics
XFMR LED DR AC/DC CONV 650UH TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | POL-24208 |
|---|---|
| Applications | LED Drivers, AC/DC SMPS |
| Chipset Manufacturer | Power Integrations |
| Height - Seated (Max) [Max] [z] | 26.3 mm |
| Height - Seated (Max) [Max] [z] | 1.035 in |
| Inductance @ Frequency | 650 µH |
| Intended Chipset | TOP224P |
| Mounting Type | Through Hole |
| Size / Dimension [x] | 1.024 in |
| Size / Dimension [x] | 26 mm |
| Size / Dimension [y] | 18.3 mm |
| Size / Dimension [y] | 0.72 in |
| Type | For AC/DC Converters |
| Voltage - Isolation | 3000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 13.20 | |
| 25 | $ 11.00 | |||
| 50 | $ 8.80 | |||
| 100 | $ 7.70 | |||
| 250 | $ 6.60 | |||
| 500 | $ 4.95 | |||
| 1000 | $ 3.30 | |||
Description
General part information
POL-24208
LED Drivers, AC/DC SMPS For For AC/DC Converters SMPS Transformer 3000V Isolation Through Hole
