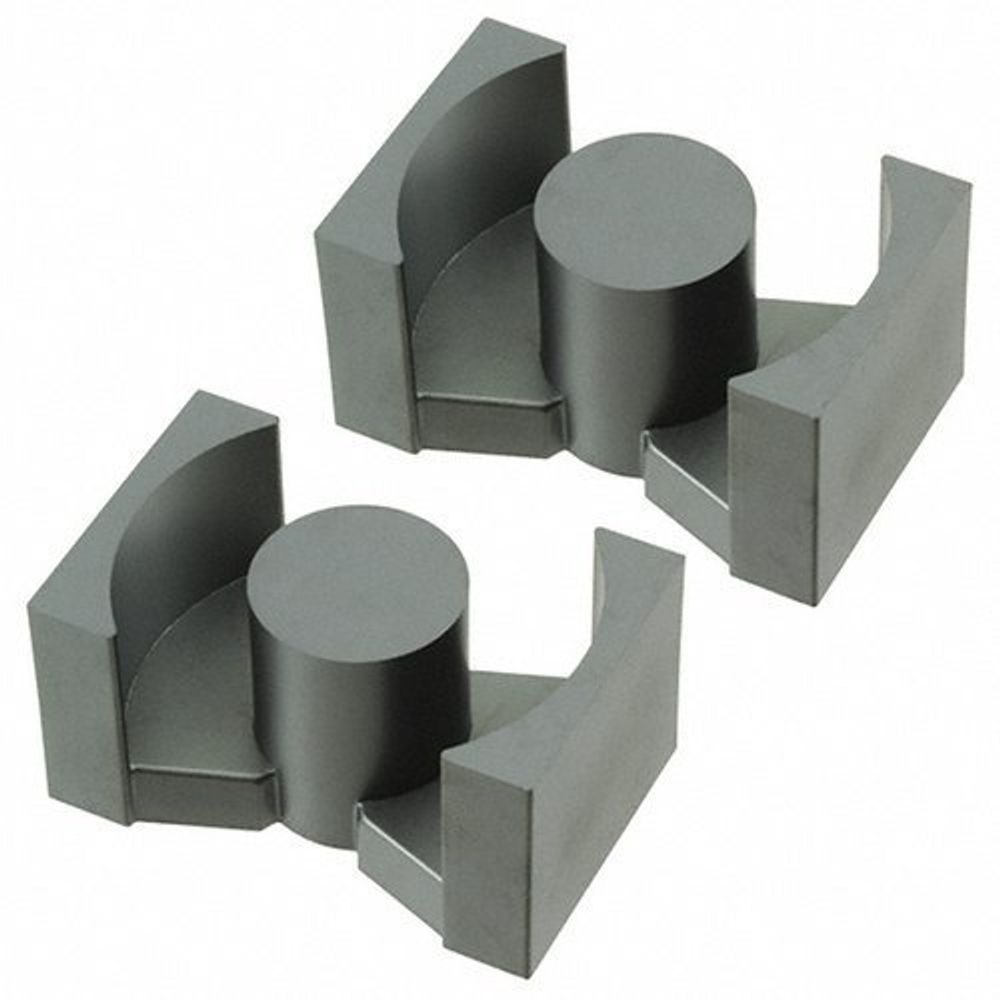

CF297 PQ3535
ActiveCosmo Ferrites Ltd.
COSMO INDIA PQ CORE MN-ZN
Deep-Dive with AI
Search across all available documentation for this part.
CF297 PQ3535
ActiveCosmo Ferrites Ltd.
COSMO INDIA PQ CORE MN-ZN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CF297 PQ3535 |
|---|---|
| Core Type | PQ |
| Finish | Uncoated |
| Height [z] | 34.7 mm |
| Height [z] | 1.366 in |
| Length [x] | 36.1 mm |
| Length [x] | 1.421 " |
| Material | 3C97 |
| Supplier Device Package | PQ |
| Supplier Device Package [x] | 35 |
| Supplier Device Package [y] | 35 |
| Width [x] | 1.024 in |
| Width [x] | 26 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 7.27 | |
Description
General part information
CF297 PQ3535
Uncoated 3C97 Ferrite Core PQ Type 1.421" (36.10mm) Length 1.024" (26.00mm) Width Diameter 1.366" (34.70mm) Height
Documents
Technical documentation and resources
No documents available
