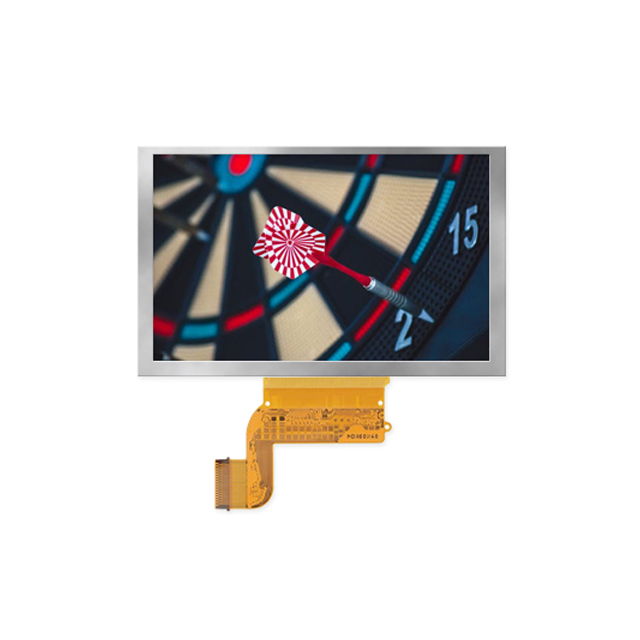

ST0500B1WY-RSLW-F
ActiveSantek
5.0" TFT LCD 800X480 WITH RTP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST0500B1WY-RSLW-F
ActiveSantek
5.0" TFT LCD 800X480 WITH RTP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST0500B1WY-RSLW-F |
|---|---|
| Backlight | LED - White |
| Controller Type | ILI5960 |
| Diagonal Screen Size [custom] | 127 mm |
| Diagonal Screen Size [custom] | 5 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch [x] | 0.05 mm |
| Dot Pitch [y] | 0.14 mm |
| Dot Pixels [x] | 800 |
| Dot Pixels [y] | 480 |
| Graphics Color | Green, Red, Blue |
| Interface | 24-Bit (RGB) |
| Touchscreen | Resistive |
| Viewing Area [y] | 109.6 mm |
| Viewing Area [z] | 66.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.99 | |
Description
General part information
ST0500B1WY-RSLW-F
Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color 24-Bit (RGB) 5" (127.00mm) 800 x 480
