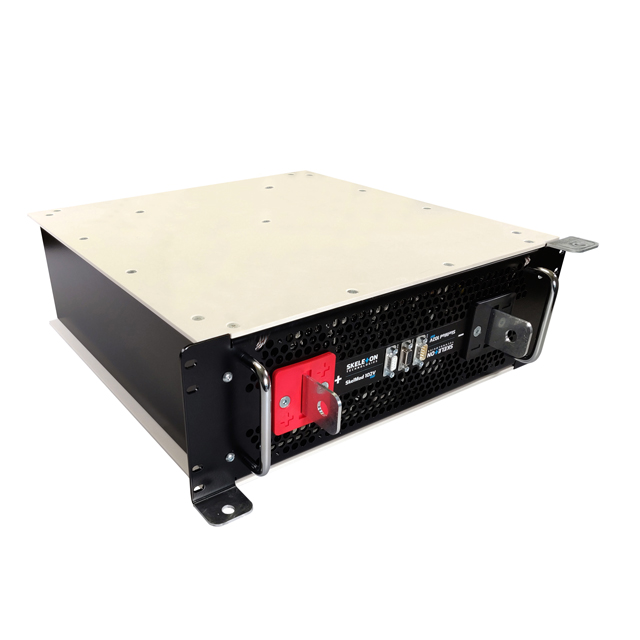

SKELMOD 102V
ActiveSkeleton Technologies GmbH
CAPACITOR 88F 102V CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKELMOD 102V
ActiveSkeleton Technologies GmbH
CAPACITOR 88F 102V CHASSIS MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKELMOD 102V |
|---|---|
| Capacitance | 88 F |
| ESR (Equivalent Series Resistance) | 7.6 mOhm |
| Height - Seated (Max) [Max] | 0.689 in |
| Height - Seated (Max) [Max] | 17.5 mm |
| Lifetime @ Temp. | 1500 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Size / Dimension [x] | 19.744 " |
| Size / Dimension [x] | 501.5 mm |
| Size / Dimension [y] | 480 mm |
| Size / Dimension [y] | 18.898 in |
| Termination | Disconnect, Quick Connect |
| Voltage - Rated [custom] | 102 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3268.56 | |
Description
General part information
SKELMOD 102V
88 F (EDLC) Supercapacitor 102 V Module 7.6mOhm 1500 Hrs @ 65°C
