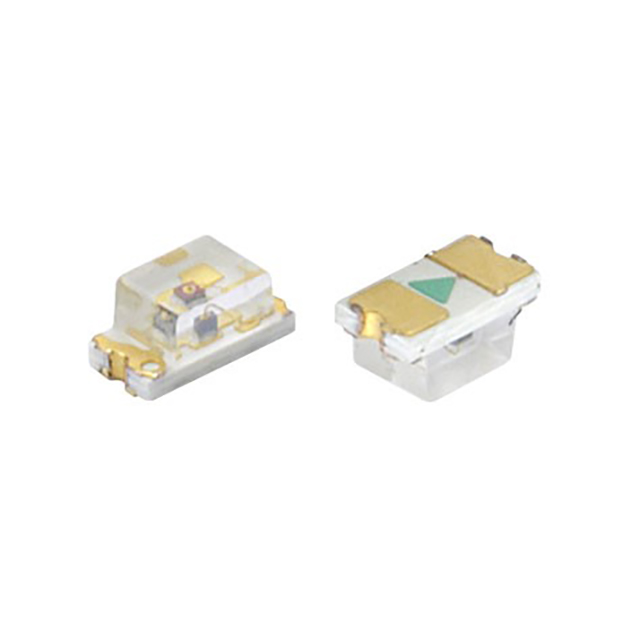

B1931TW-05P-001914
ActiveChromeLED
LED WHITE CLEAR CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B1931TW-05P-001914
ActiveChromeLED
LED WHITE CLEAR CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B1931TW-05P-001914 |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] [z] | 0.4 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.6 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 180 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 135 ° |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 100 | $ 0.06 | |
| 4000 | $ 0.04 | |||
| 60000 | $ 0.04 | |||
| 100000 | $ 0.03 | |||
Description
General part information
B1931TW-05P-001914
White LED Indication - Discrete 2.9V 0603 (1608 Metric)
