LMR-400-DB-TM-4195M(QTY:5M)
ActiveMcGill Microwave Systems
LMR 400 DB CABLE ASSY 5M TNC TO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LMR-400-DB-TM-4195M(QTY:5M)
ActiveMcGill Microwave Systems
LMR 400 DB CABLE ASSY 5M TNC TO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-400-DB-TM-4195M(QTY:5M) |
|---|---|
| 1st Connector | TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | 4.1/9.5 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR 400 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Length | 196.9 in |
| Length | 5 m |
| Length | 16.4 ft |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | TNC to 4.1/9.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 84.23 | |
| 10 | $ 80.40 | |||
| 25 | $ 76.57 | |||
Description
General part information
LMR-400-DB-TM-4195M(QTY:5M)

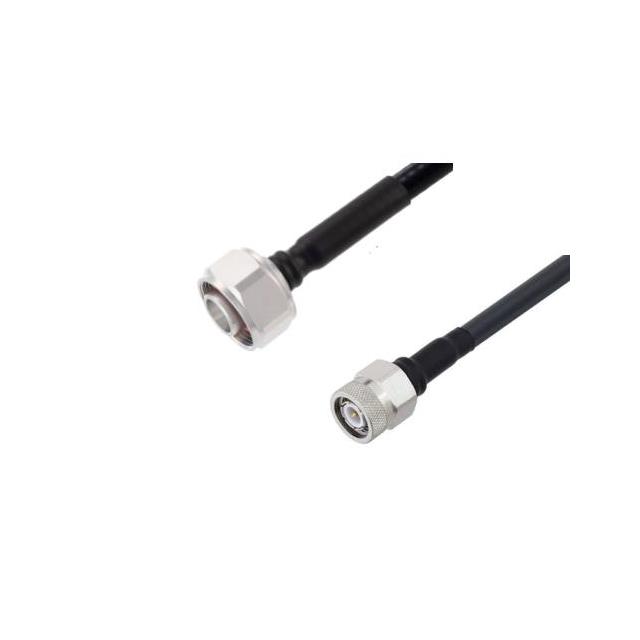

Cable Assembly Coaxial TNC to 4.1/9.5 LMR 400 196.9" (5.0m) 16.4'
