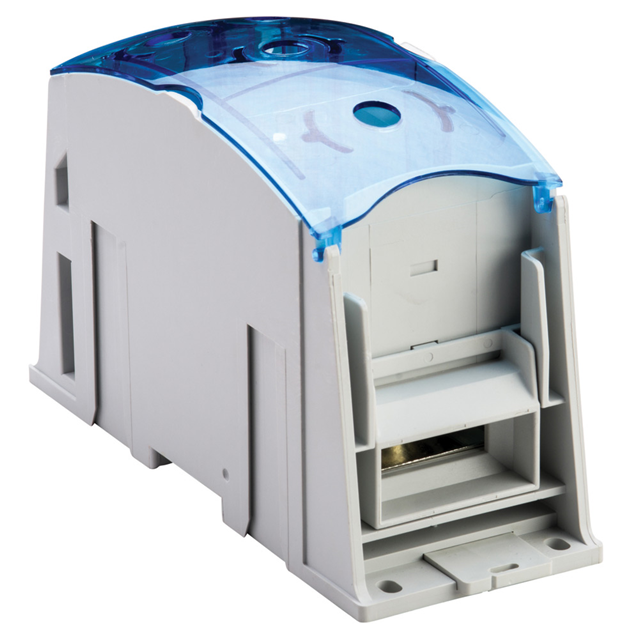

561176
ActivenVent
SPLICE BLOCK 1260A UL ALUMINUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 561176 |
|---|---|
| Current Rating (Amps) | 1260 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire/Stud Size | 1000 MCM |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 2 |
| Load Side Wire/Stud Size | #2AL |
| Load Side Wire/Stud Size | 600 MCM (kcmil) |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 167.03 | |
Description
General part information
561176
1 Pole Power Distribution Block 1260 A 1000 V
