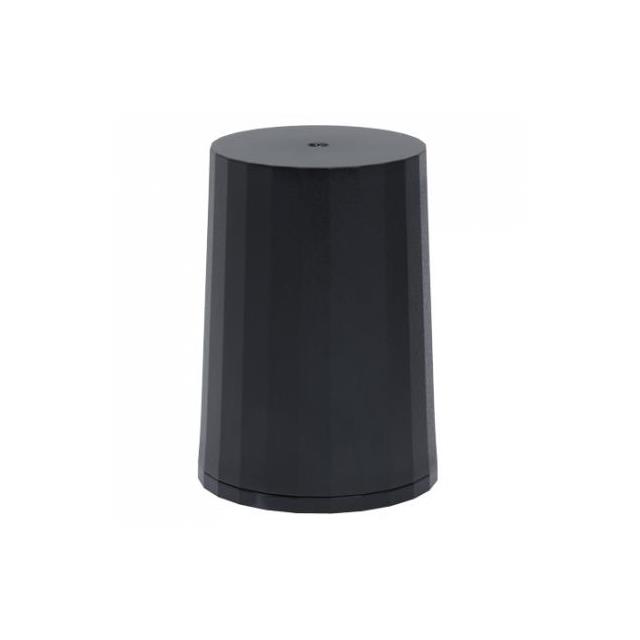

33-HC860-35
ActiveCalian
DUAL BAND, ACTIVE IRIDIUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
33-HC860-35
ActiveCalian
DUAL BAND, ACTIVE IRIDIUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 33-HC860-35 |
|---|---|
| Antenna Type | Helical |
| Applications | GLONASS, GNSS, GPS, Beidou, Galileo |
| Features | Filter, LNA |
| Frequency (Center/Band) | 1.59275 GHz, 1.236 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.255 GHz, 1.6265 GHz |
| Frequency Range [Min] | 1.217 GHz, 1.559 GHz |
| Gain | 2.2 dBi, 2.1 dBi, 2.4 dBi, 2.6 dBi |
| Height (Max) [Max] | 62.4 mm |
| Height (Max) [Max] | 2.457 in |
| Ingress Protection | IP67 |
| Mounting Type | Base Mount |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 199.00 | |
Description
General part information
33-HC860-35
RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS Helical SMA Male Base Mount
