VHXC0581V101MVCG
ActiveYmin

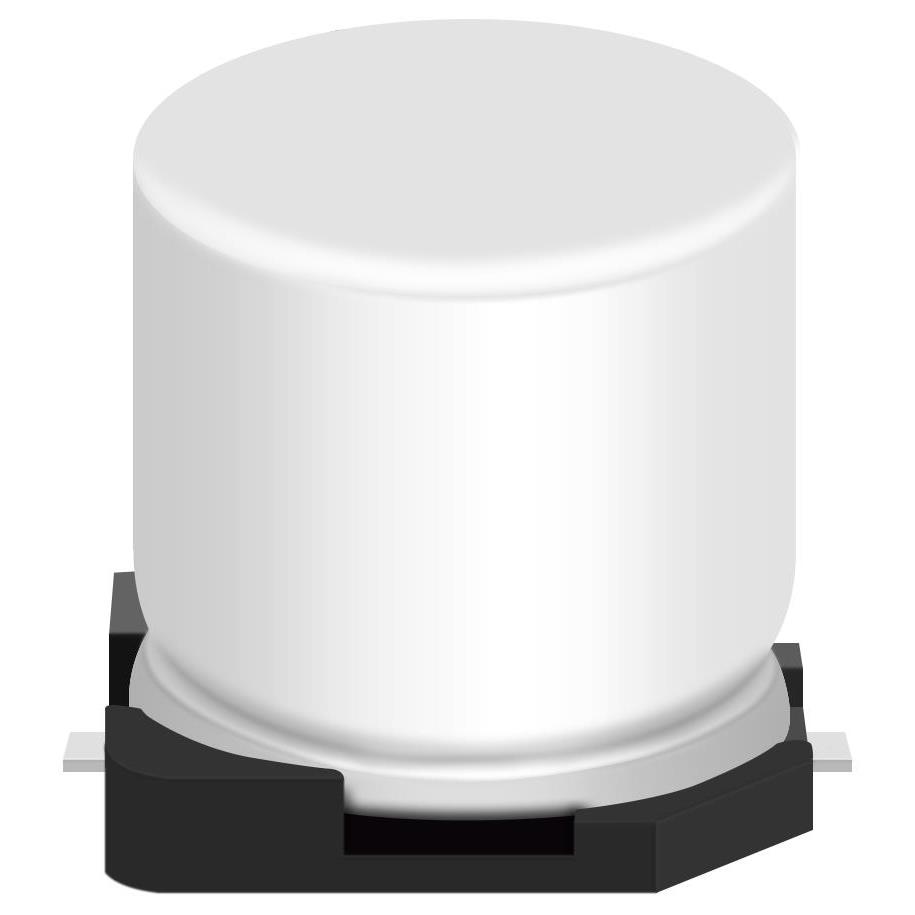

CAP ALUMHYB 100UF 20% 35V SMD
Deep-Dive with AI
Search across all available documentation for this part.
VHXC0581V101MVCG
ActiveYmin
CAP ALUMHYB 100UF 20% 35V SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VHXC0581V101MVCG |
|---|---|
| Applications | Automotive |
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 60 mOhms |
| Height - Seated (Max) [Max] | 6.3 mm |
| Height - Seated (Max) [Max] | 0.248 in |
| Impedance | 60 mOhms |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ratings | AEC-Q200 |
| Size / Dimension [diameter] | 0.248 in |
| Size / Dimension [diameter] | 6.3 mm |
| Surface Mount Land Size [x] | 6.6 mm |
| Surface Mount Land Size [x] | 0.26 in |
| Surface Mount Land Size [y] | 0.26 in |
| Surface Mount Land Size [y] | 6.6 mm |
| Tolerance | 20 % |
| Type | Hybrid |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.76 | |
| 10 | $ 0.46 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.22 | |||
| 2500 | $ 0.20 | |||
| 5000 | $ 0.19 | |||
Description
General part information
VHXC0581V101MVCG
100 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 60mOhm 2000 Hrs @ 105°C
Documents
Technical documentation and resources
No documents available
