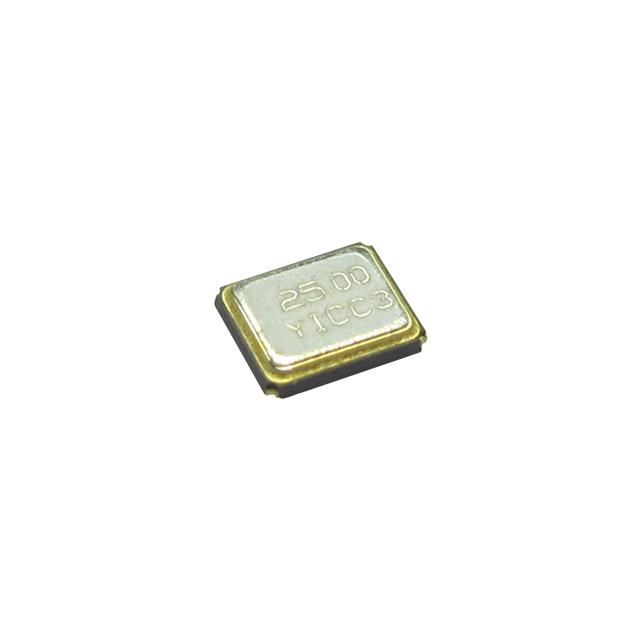

25M20P2/XT324-10/10
ActiveYIC
CRYSTAL 25MHZ 20PF SMD 3.2X2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
25M20P2/XT324-10/10
ActiveYIC
CRYSTAL 25MHZ 20PF SMD 3.2X2.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 25M20P2/XT324-10/10 |
|---|---|
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Frequency | 25 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.31 | |
| Digi-Reel® | 1 | $ 0.31 | ||
| Tape & Reel (TR) | 3000 | $ 0.31 | ||
Description
General part information
25M20P2/XT324-10/10
25 MHz ±10ppm Crystal 20pF 40 Ohms 4-SMD, No Lead
