50208-00401-001
ActiveAces Connectors
4PIN, 0.8MM WIRE TO BOARD IDT CO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
50208-00401-001
ActiveAces Connectors
4PIN, 0.8MM WIRE TO BOARD IDT CO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 50208-00401-001 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 1.7 mm |
| Insulation Height | 0.067 in |
| Insulation Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.031 in |
| Pitch - Mating | 0.8 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.65 | |
| 10 | $ 0.49 | |||
| 100 | $ 0.38 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.29 | |||
| Digi-Reel® | 1 | $ 0.65 | ||
| 10 | $ 0.49 | |||
| 100 | $ 0.38 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.29 | |||
| Tape & Reel (TR) | 3500 | $ 0.26 | ||
| 7000 | $ 0.24 | |||
| 10500 | $ 0.23 | |||
| 17500 | $ 0.22 | |||
| 24500 | $ 0.21 | |||
| 35000 | $ 0.21 | |||
Description
General part information
50208-00401-001

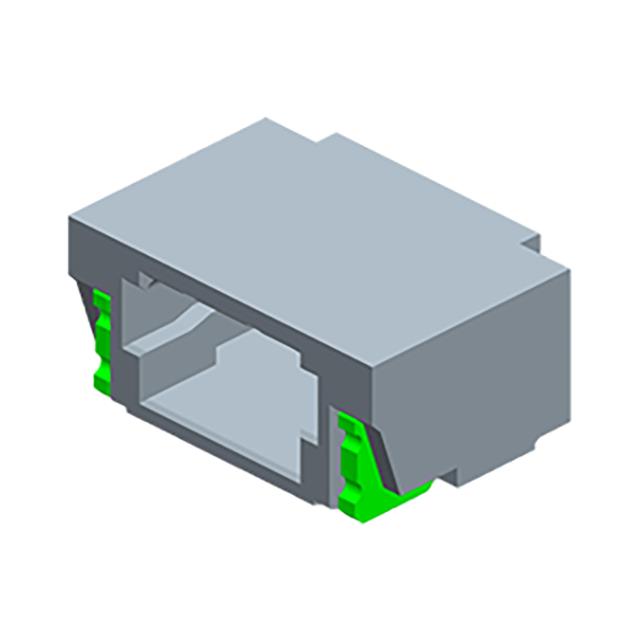

Connector Header Surface Mount, Right Angle 4 position 0.031" (0.80mm)
