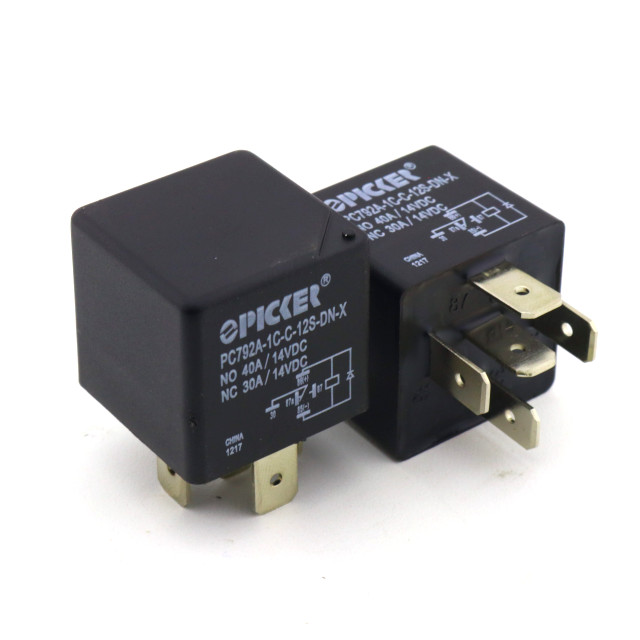

PC792A-1C-C-12S-DN-X
ActivePicker Components
RELAY AUTOMOTIVE SPDT 40A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC792A-1C-C-12S-DN-X
ActivePicker Components
RELAY AUTOMOTIVE SPDT 40A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC792A-1C-C-12S-DN-X |
|---|---|
| Coil Current | 133 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 90 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Features | Sealed - Fully, Diode |
| Mounting Type | Socketable |
| Must Operate Voltage | 7.8 VDC |
| Must Release Voltage | 1.8 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
| Switching Voltage | 75 VDC |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.52 | |
| 20 | $ 2.36 | |||
| 40 | $ 2.00 | |||
| 100 | $ 1.89 | |||
| 260 | $ 1.68 | |||
| 500 | $ 1.58 | |||
| 1000 | $ 1.47 | |||
| 5000 | $ 1.42 | |||
Description
General part information
PC792A-1C-C-12S-DN-X
RELAY AUTOMOTIVE SPDT 40A 12V
