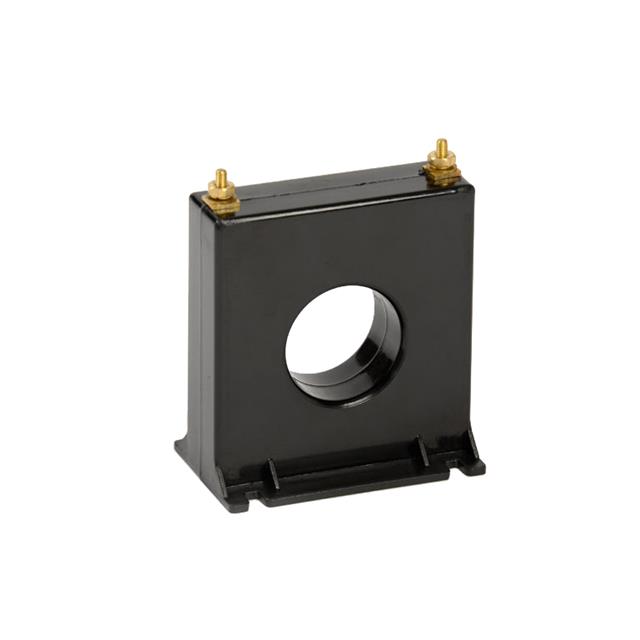

37020
ActiveSimpson Electric
CURR SENSE XFMR CHAS MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
37020
ActiveSimpson Electric
CURR SENSE XFMR CHAS MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 37020 |
|---|---|
| Frequency Range [Max] | 400 Hz |
| Frequency Range [Min] | 50 Hz |
| Height - Seated (Max) [Max] | 54.61 mm |
| Height - Seated (Max) [Max] | 2.15 in |
| Mounting Type | Chassis Mount |
| Size / Dimension [x] | 96.01 mm |
| Size / Dimension [x] | 3.78 " |
| Size / Dimension [y] | 89.66 mm |
| Size / Dimension [y] | 3.53 in |
| Termination Style | Terminal Block |
| Type | Non-Invasive (Solid Core) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4158.02 | |
Description
General part information
37020
Current Sense Transformer 50Hz ~ 400Hz Chassis Mount
