GW11049-1
ActiveGateworks Corporation
GW7300-00 DEVKIT: SBC-POWER-JTAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GW11049-1 |
|---|---|
| Core Processor | NXP i.MX8M Mini ARMv8 64-bit |
| Digital I/O Lines | Standard |
| Ethernet | GbE (2) |
| Expansion Site/Bus | SPI, I2C, Mini-PCIe |
| Number of Cores | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 6 W |
| RAM Capacity/Installed | 4 GB |
| RS-232 (422, 485) | 3 |
| Size / Dimension [x] | 104.14 mm |
| Size / Dimension [x] | 4.1 " |
| Size / Dimension [y] | 99.06 mm |
| Size / Dimension [y] | 3.9 in |
| Speed | 1.6 GHz |
| Storage Interface | microSD, eMMC |
| USB | USB 2.0 (2) |
| Video Outputs | MIPI-CSI, Serial Audio, MIPI-DSI |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 557.70 | |
Description
General part information

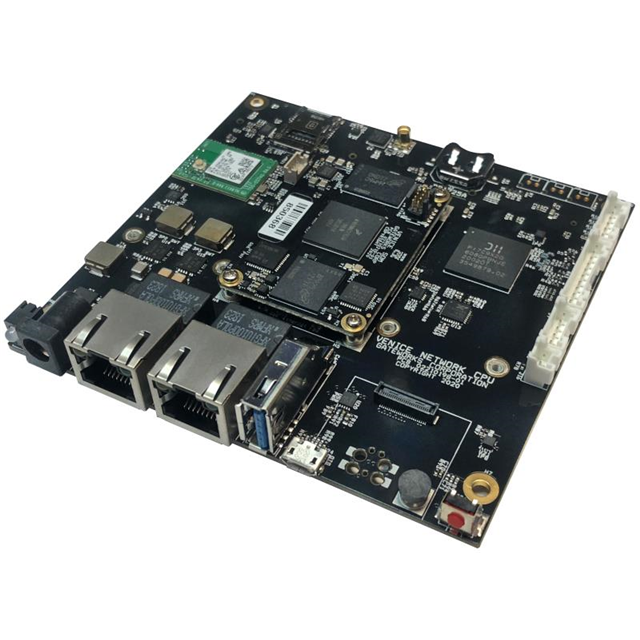

GW11049-1
Single Board Computer 1.6GHz 4 Core 4GB RAM NXP i.MX8M Mini ARMv8 64-bit
