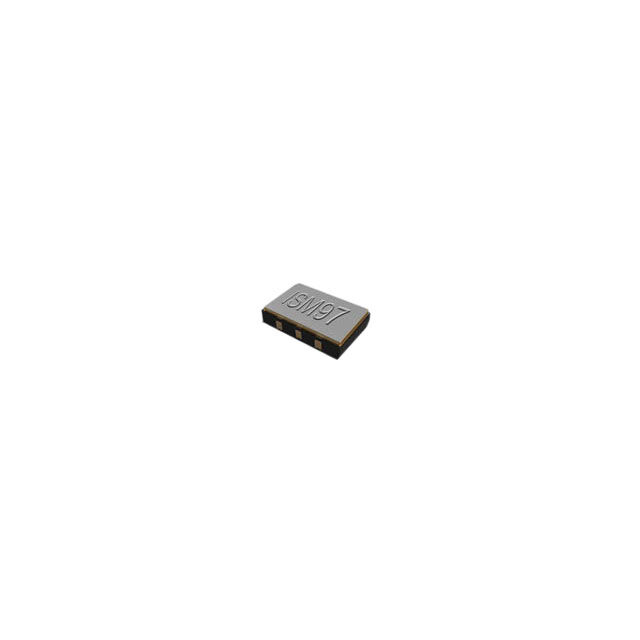

ISM97-3251AH-20.000MHZ
ActiveILSI
OSC XO 20MHZ 3.3V CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISM97-3251AH-20.000MHZ
ActiveILSI
OSC XO 20MHZ 3.3V CMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ISM97-3251AH-20.000MHZ |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 10 ÁA |
| Current - Supply (Max) [Max] | 20 mA |
| Frequency | 20 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.67 | |
| Digi-Reel® | 1 | $ 1.67 | ||
| Tape & Reel (TR) | 3000 | $ 1.00 | ||
Description
General part information
ISM97-3251AH-20.000MHZ
20 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
